CASE STUDY

16857: PROJECT FEEDING STEEL SLUGS INTO INDUCTION HEATER

Feedall Model

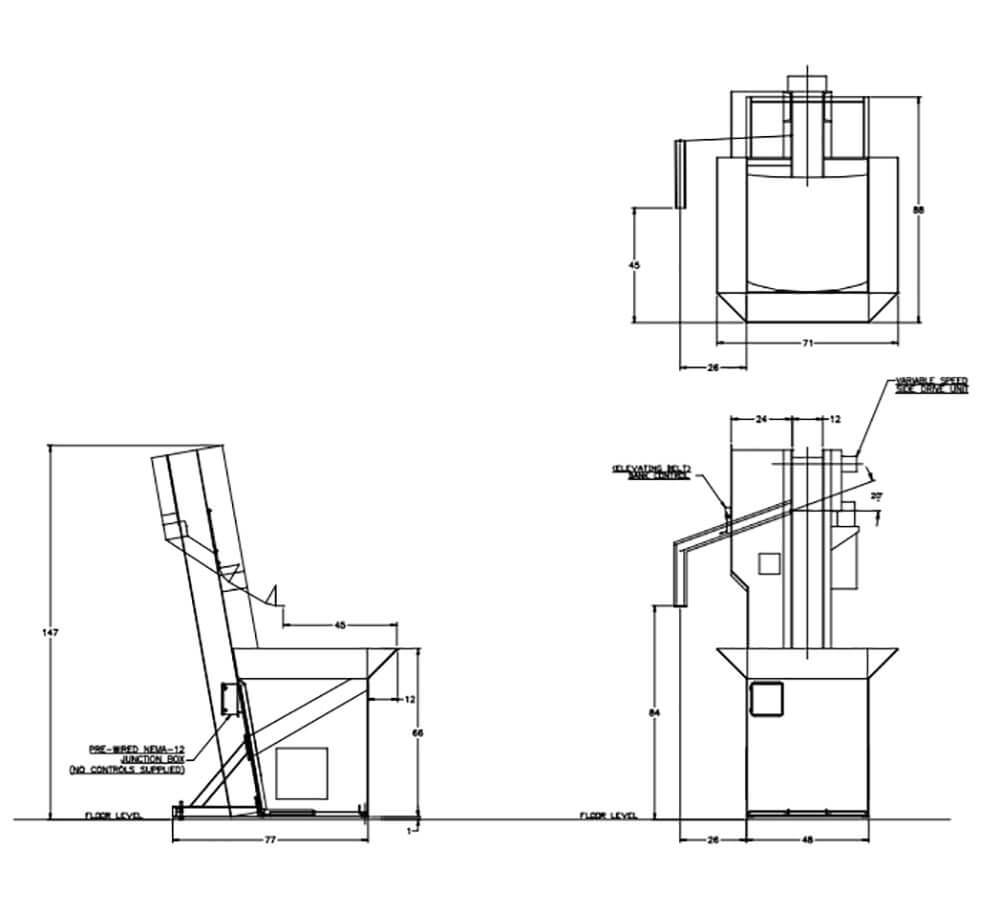

Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Saw Cut Steel Slugs will be elevated from the hopper via a cleated belt and fed oriented in a continuous rolling stream and discharged to customer supplied conveyor.

WIDTH

12” Wide Elevating Belt

DRIVE

1 HP/AC Motor

PARTS FED (SIZE)

Saw-Cut Steel Slugs (2.375”-3.00”Ø x 0.88”-1.25” Lg.)

FEED RATE

20 Parts/Minute
