CASE STUDY

16697: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

Feedall Model

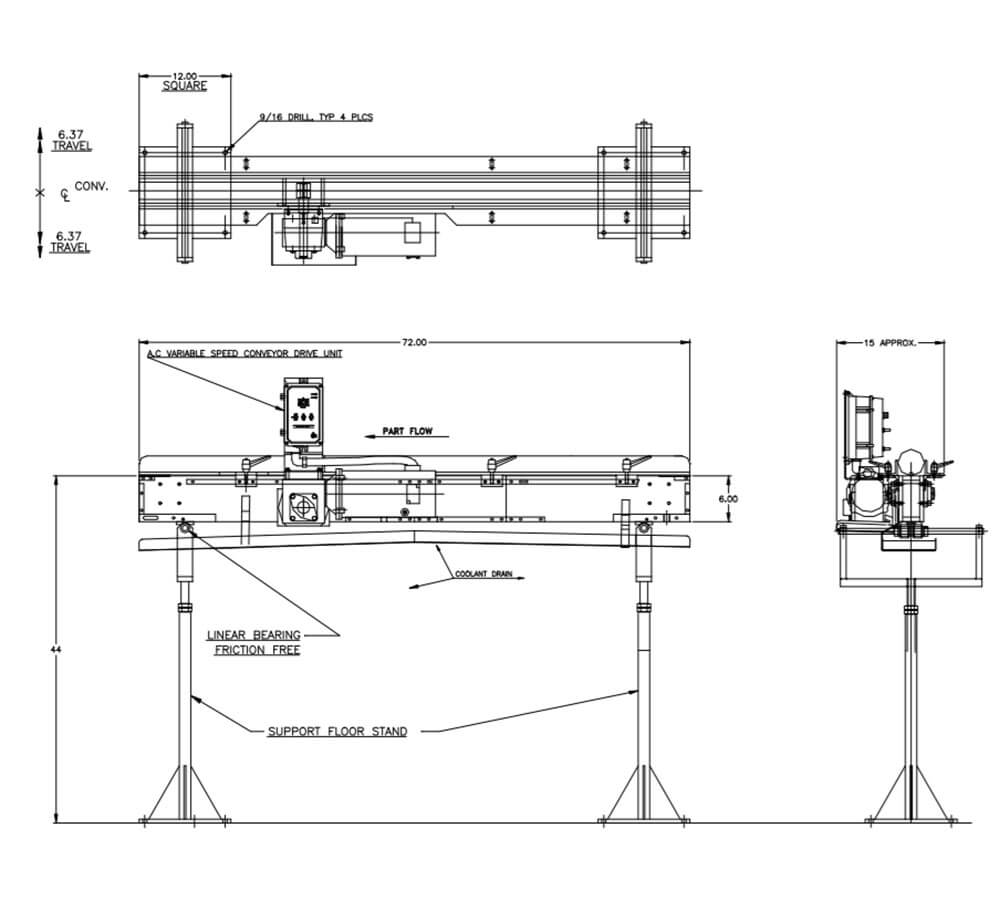

Model 1650HD-2SC-72 Intermediate Conveyor

APPLICATION

Convey Steel Pins between the workrests of two CINCINNATI #2 EA Centerless Grinders.

WIDTH

2” Wide Silent Chain

DRIVE

1/2 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Steel Shafts (0.50”-3.50”Ø x 3.00”-24.00” Lg.)

FEED RATE

1-50 Feet/Minute
