CASE STUDY

16688: PROJECT FEEDING ALTERNATOR ROTOR SHAFTS INTO ASSEMBLY MACHINE

Feedall Model
Model 1775 Magazine Bar Feeder

APPLICATION

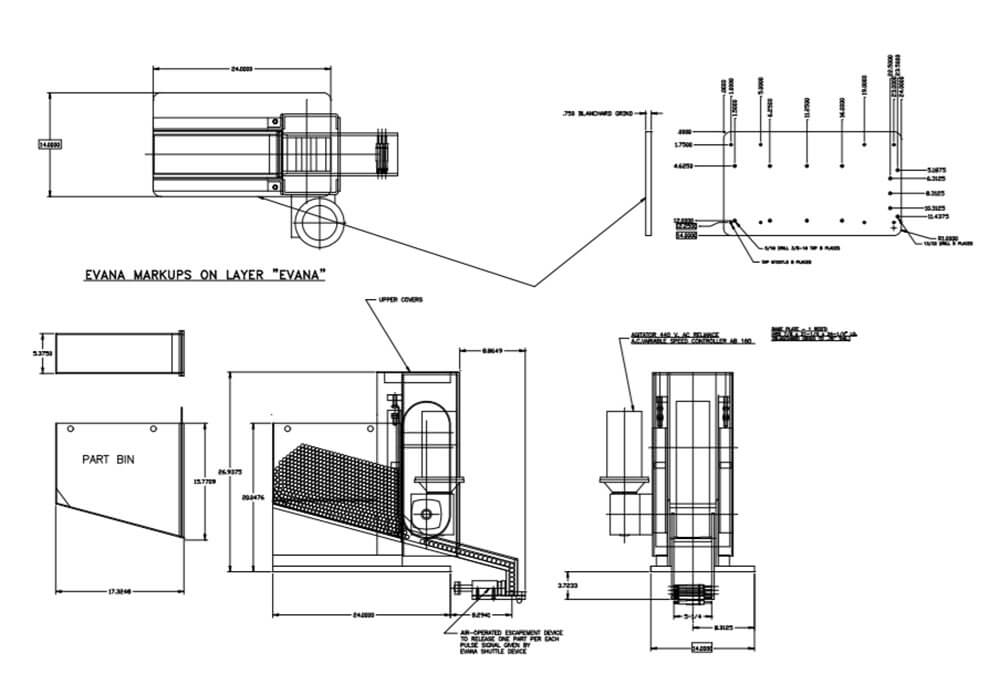

Feed from a manually loaded magazine. The Alternator Rotor Shafts will be agitated within the magazine with a vertical driven agitator belt rotating against the shafts in the magazine to prevent bridging. The magazine track will be solid to support the full length of the shafts. The shafts will be fed in a continuous, diameter-to-diameter stream, and then escaped one at a time into customer supplied shuttle device.

DRIVE

1/4 HP/AC Motor

PARTS FED (SIZE)

Alternator Rotor Shafts (17.4mmØ x 128.3mm Lg.)

FEED RATE

15 Parts/Minute
