11936: PROJECT FEEDING MOTOR SHAFTS INTO CENTERLESS GRINDER
Model K 1725

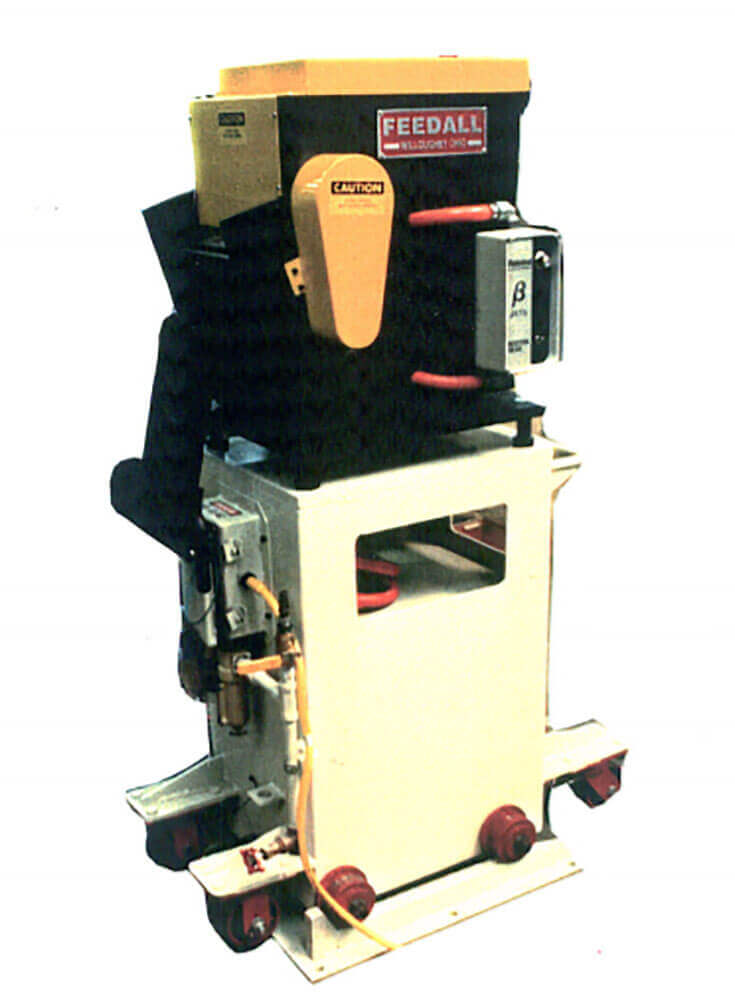

Feed from a manually loaded magazine, vacuum motor shafts. Shafts with multiple diameters fed with a solid drum type agitator then escaped at a height of 42″ above the floor at a rate of 6 per minute to a loading fixture on a centerless grinder for plung grinding. Feeder was equipped with the magazine mounted on Thomson bearing shafts to allow movement during plunge cycle, a base with casters and a floor grinder for wheel replacement and relocated in position.
DWG. PD 8334
FEED RATE6 per minute
