CASE STUDY

11765: PROJECT FEEDING THROTTLE SHAFTS INTO WIRE BRUSH

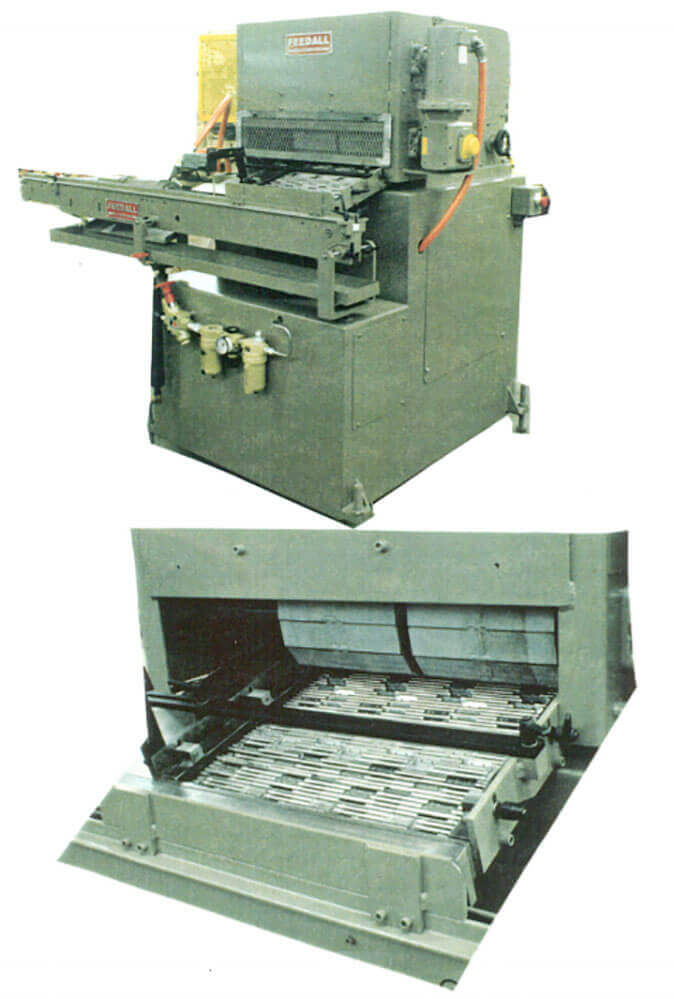

Feedall Model
Model 1775

APPLICATION

Feed from a manually loaded magazine, CYL head, and throttle body, throttle plate shafts .312″ DIA. X 6 to 20″ LG. The shafts will be escaped rolling to the front cross conveyor then fed end to end to wire brush machine at 42″ above the floor at a rate of 10 to 20 per minute.
Note: the shafts were finished and plated thus the feeder was equipped with a non-mar plastic agitator belt.
DWG. P 8119

FEED RATE

10 to 20 per minute
