CASE STUDY

11649: PROJECT FEEDING STEEL BARS & TUBES INTO CENTERLESS GRINDER

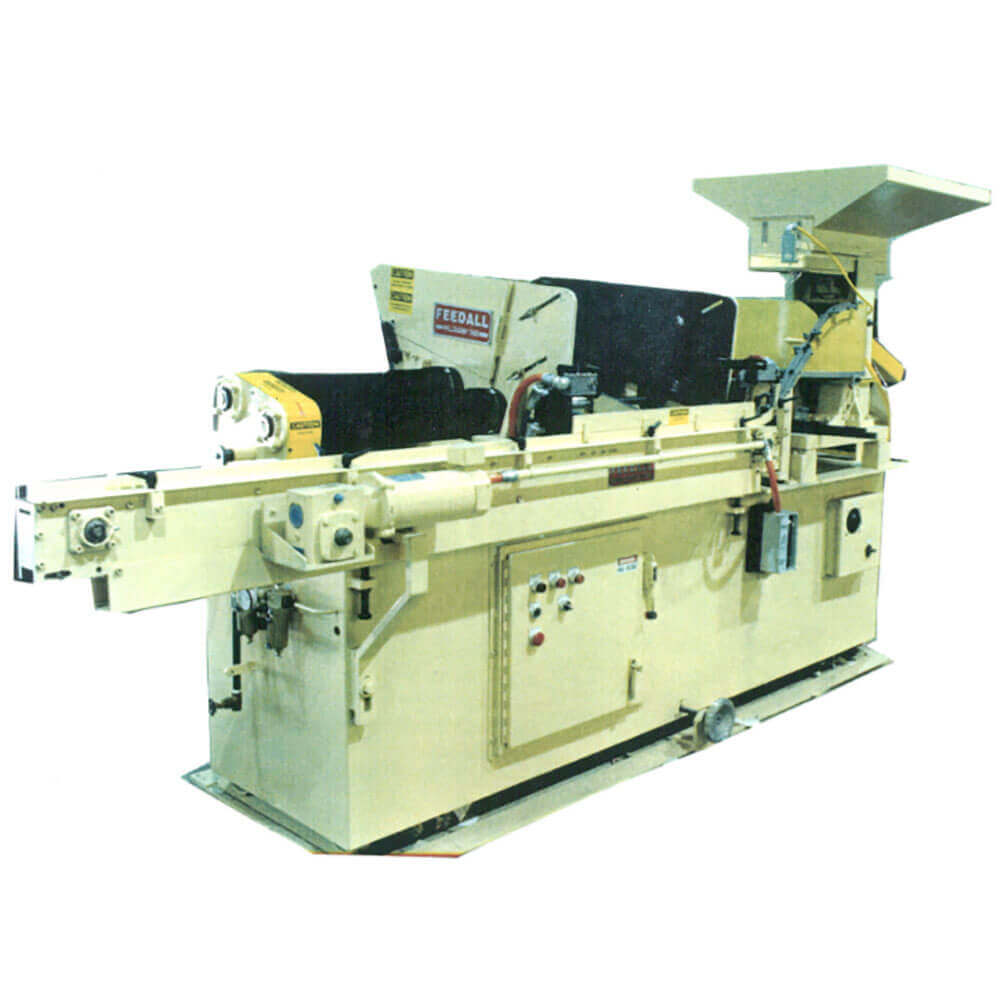

Feedall Model
Model 1700-248 C/W Feeder Bowl

APPLICATION

Feed from a manually loaded magazine, steel bars and tubes, 3/8 to 1 3/8 DIA. X 3 3 1/2 to 44″ LG. and feed from a hopper loaded bowl steel pins 3/8 to 3/4 DIA. X 1 3/4 to 3 1/2 LG. to a centerless grinder at 42 3/4″ above the floor. Feed rates of 50 to 150″ per minute.
DWG. PD 8072R 1.

FEED RATE

50 to 150" per minute
