CASE STUDY

11548: PROJECT FEEDING PUMP SHAFTS INTO CENTERLESS GRINDER

Feedall Model
Model 1775

APPLICATION

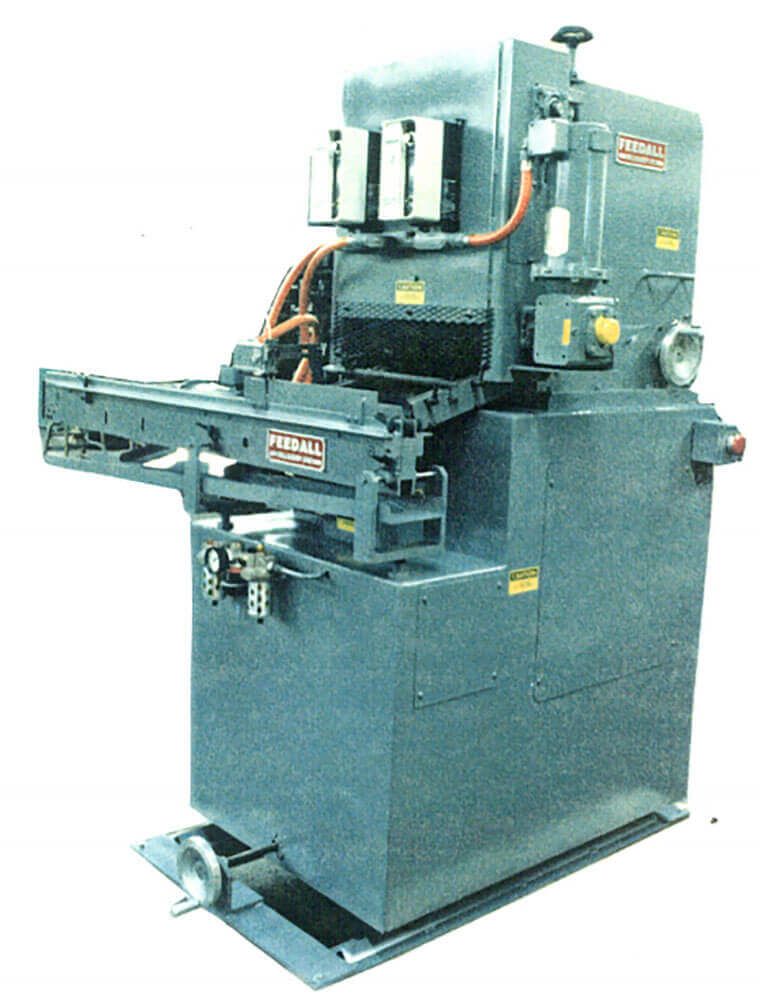

Feed from a manually loaded magazine pump shafts 7/8 to 1 1/4″ DIA. X 2 2 1/4 X 13 3/4 LG. The shafts will be escaped rolling one at a time to the front cross conveyor then fed end to end to a centerless grinder at a height of 42 3/4″ above the floor at a rate of 20 per minute.
Note: this style magazine feeder is used when shafts are machined with multiple journals or diameters and when parts cannot be agitated with the cam agitators in the model 1700 D.
DWG. P 8034



FEED RATE

20 per minute
