CASE STUDY

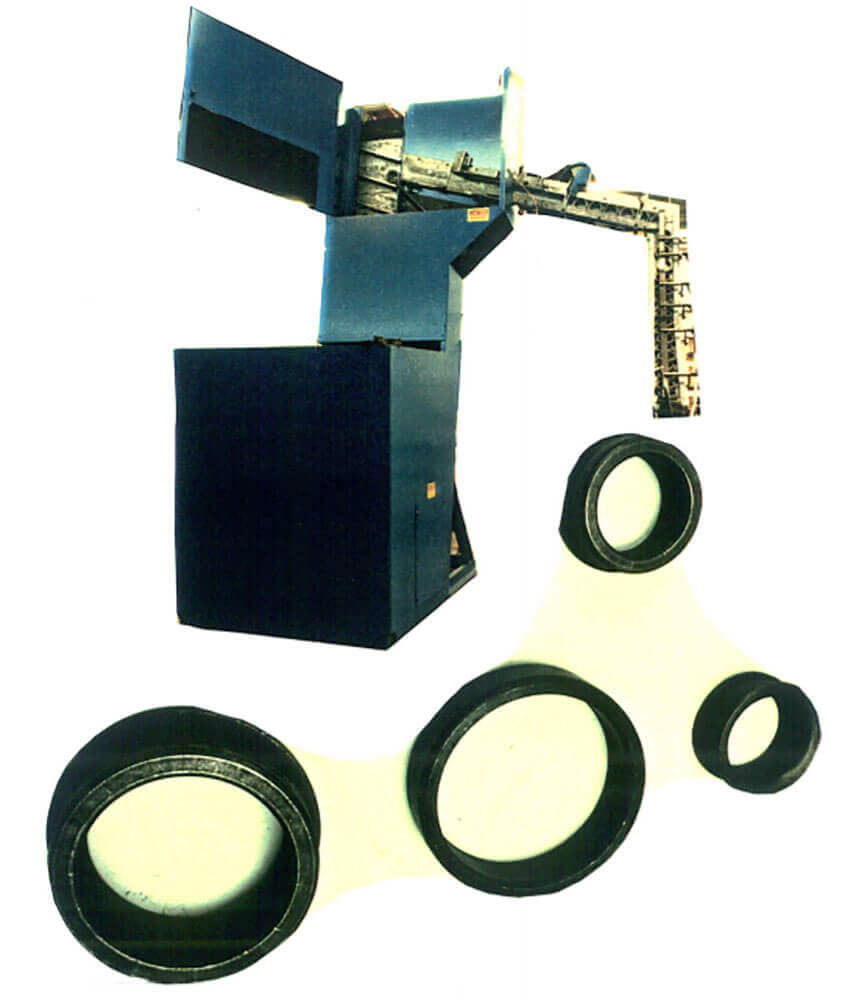

10763: PROJECT FEEDING INNER & OUTER RACES INTO SURFACE GRINDER

Feedall Model
Model 2500 D

APPLICATION

Feed from a random loaded floor mounted hopper, inner and outer bearing races 1.75 to 5.00″ DIA. X .57 to 1.6″ thick. The bearings will be oriented diameter to diameter rolling in a single stream then fed to a position 48″ above the floor laying flat axis horizontal to the customer’s conveyor at a rate of 20 to 30 per minute.
12″ wide elevator belt, 20 CU. FT. Hopper.
DWG. 7530

WIDTH

12" wide elevator belt

FEED RATE

20 to 30 per minute
