CASE STUDY

10354: PROJECT FEEDING STEEL BARS INTO THREAD ROLLER

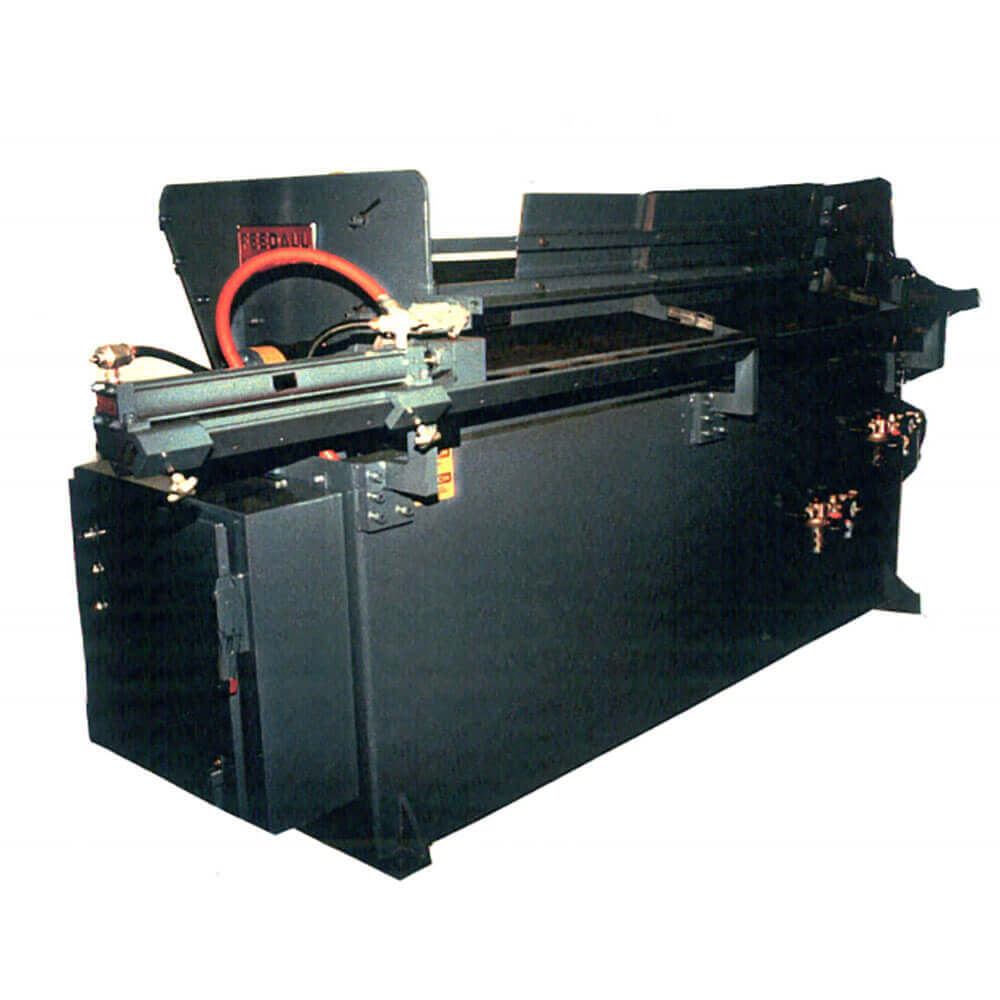

Feedall Model
Model 1700 272

APPLICATION

Feed from a manually loaded magazine steel rod blanks for threaded rods 1/4 to 1″ DIA. x 12 to 72″ LG. The blanks will be escaped rolling one at a time to the front mounted pneumatic pusher then advanced to the thread roller at a rate of 10 to 20 per minute at a height of 42″ above the floor.
DWG. PD 7133 R 2.

FEED RATE

10 to 20 per minute
