CASE STUDY

17662: PROJECT FEEDING VALVE GUIDES INTO CENTERLESS GRINDER

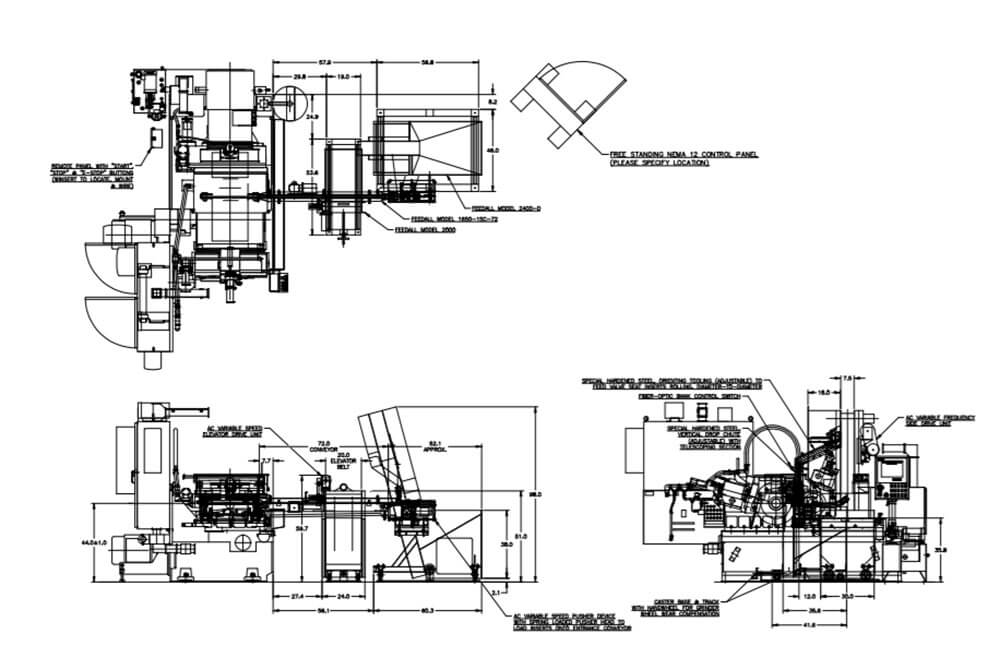

Feedall Model
Model 2000 Elevating Hopper Feeder w/1650-1SC-72 Entrance Conveyor & Model 2400-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Valve Seat Inserts. Inserts will be elevated from the hopper via a cleated belt and discharged in a continuous stream. The parts will be deposited in a continuous, face-to-face stream to the workrest of a Landis Model 350- 20 RK Centerless Grinder.

WIDTH

20” Wide Elevating Belt

DRIVE

1/4 HP/AC Motor

PARTS FED (SIZE)

Valve Guides (0.472”-0.751”Ø x 0.787”-1.516” Lg.)

FEED RATE

55-100 Inches/Minute
