17505: PROJECT FEEDING EXCAVATOR TRACK BUSHINGS INTO CNC TURNING CENTER

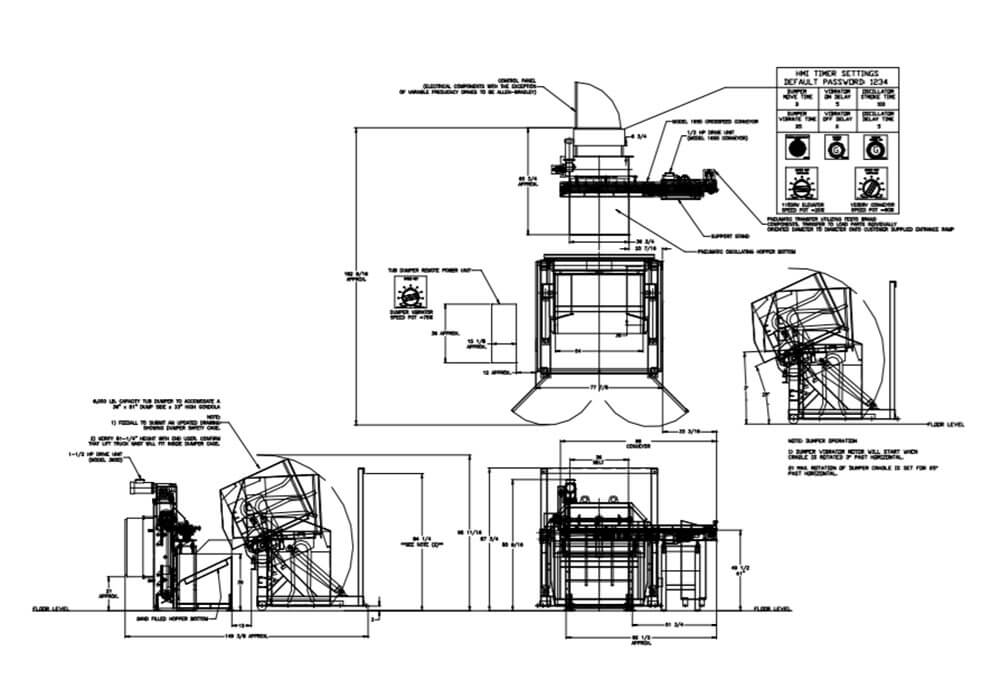

Model 3600 Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor & TC-36-36-6,000# Metering Hydraulic Tub Dumper
Feed from a random loaded, floor mounted hopper. The track pins will be metered from a tub into the hopper via a low level signal cycling a 6000# vibrating hydraulic tub dumper. Then the parts are vertically elevated from the hopper and discharged in a continuous stream onto a horizontal cross-feed conveyor and fed in a continuous stream to an air-operated transfer device. Then the transfer device will load pins into a load chute.
WIDTH36” Wide Elevating Belt
DRIVE2 HP/AC Motor
PARTS FED (SIZE)Excavator Track Bushings (2.73”-3.48”Ø x 5.64”-8.87” Lg.)
FEED RATE2 Parts/Minute
