CASE STUDY

17232: PROJECT FEEDING SUSPENSION BUSHING INNER METAL TUBES INTO ROLL COATER

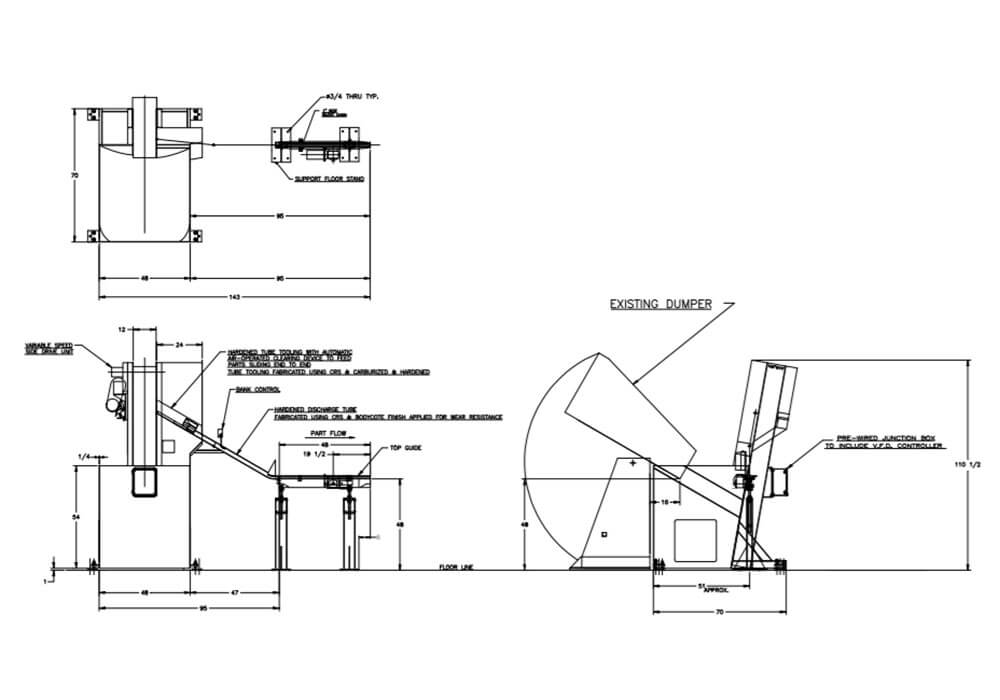

Feedall Model
Model 2500-C Elevating Hopper Feeder w/1650-1SC-48 Entrance Conveyor

APPLICATION

Feed from a random loaded, floor mounted hopper. The Steel Tubes will be elevated from the hopper via a cleated belt and fed oriented in a continuous rolling stream and discharged with axis horizontal on existing conveyor.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Suspension Bushing Inner Metal Tubes (18.00mm-33.00mmØ x 27.00mm-99.85mm Lg.)

FEED RATE

48-168 Parts/Minute
