13470: PROJECT FEEDING DEEP DRAWN WINDOW METAL INTO ASSEMBLY MACHINE

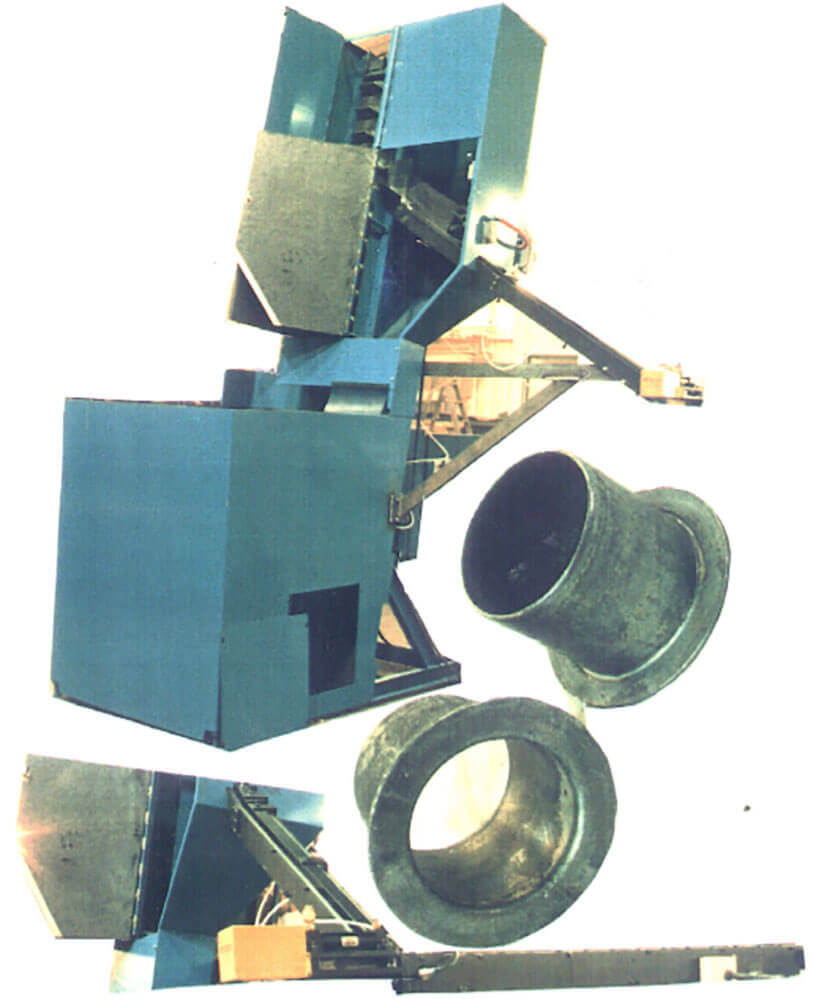

Feed from a random loaded floor hopper, steel deep drawn bushings 2 1/2″ DIA. The bushings are elevated from the hopper and oriented hanging by the flange then fed to a pusher device and advance one at a time into a horizontal chute DIA. to DIA, to the press load station at 67″ above the floor at a rate of 30 to 50 per minute.
DWG. PD 9237-R2
FEED RATE30 to 50 per minute
