CASE STUDY

18030: PROJECT FEEDING SWAGED TUBES INTO CENTERLESS GRINDER

Feedall Model

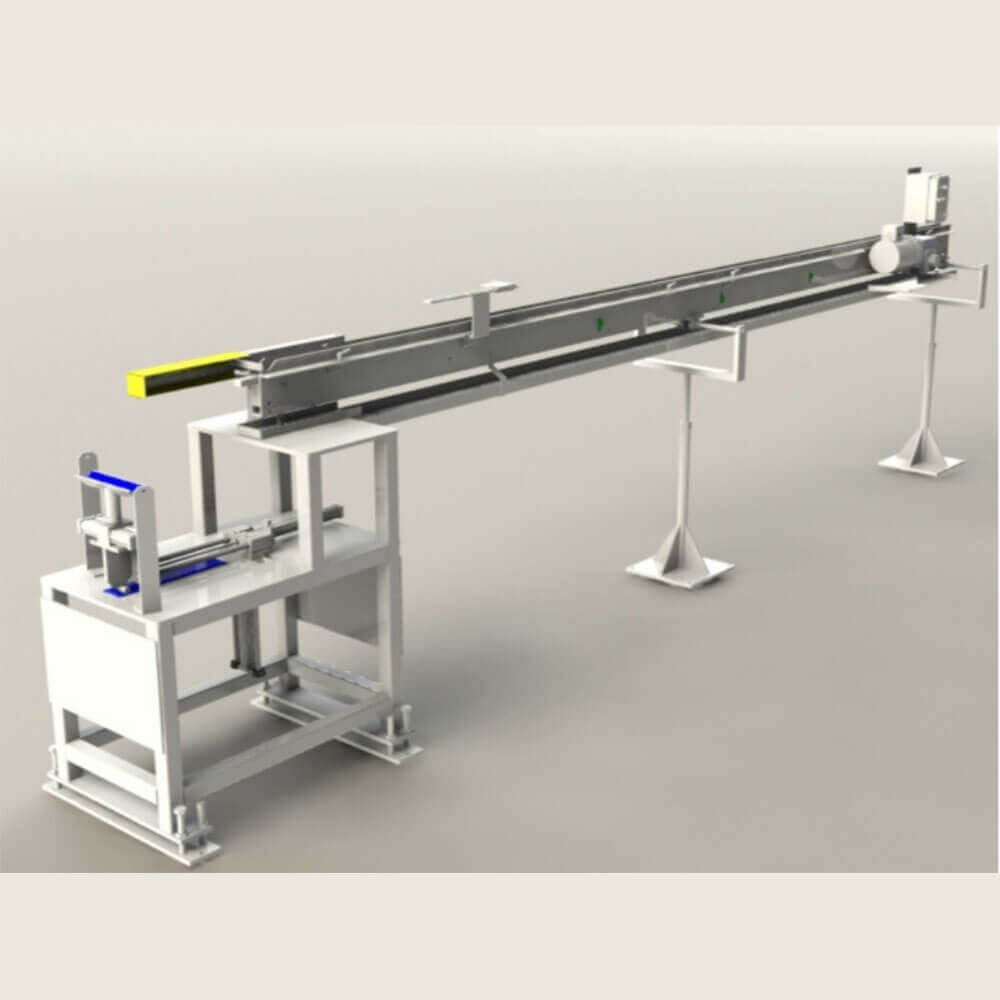

Model 1650-1PB-166 Entrance Conveyor

APPLICATION

Accept Swaged Tubes from a Swaging Machine onto an air-operated rotary/transfer device. This device will orient tubes with alternating end selection so that swaged ends are together, then lift and transfer onto conveyor feeding tubes end-to-end to the workrest of a CINCINNATI Model 40-20 Centerless Grinder.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Swaged Tubes (43mmØ x 211.99mm” Long)

FEED RATE

6 Parts/Minute
