CASE STUDY

17724: PROJECT FEEDING FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

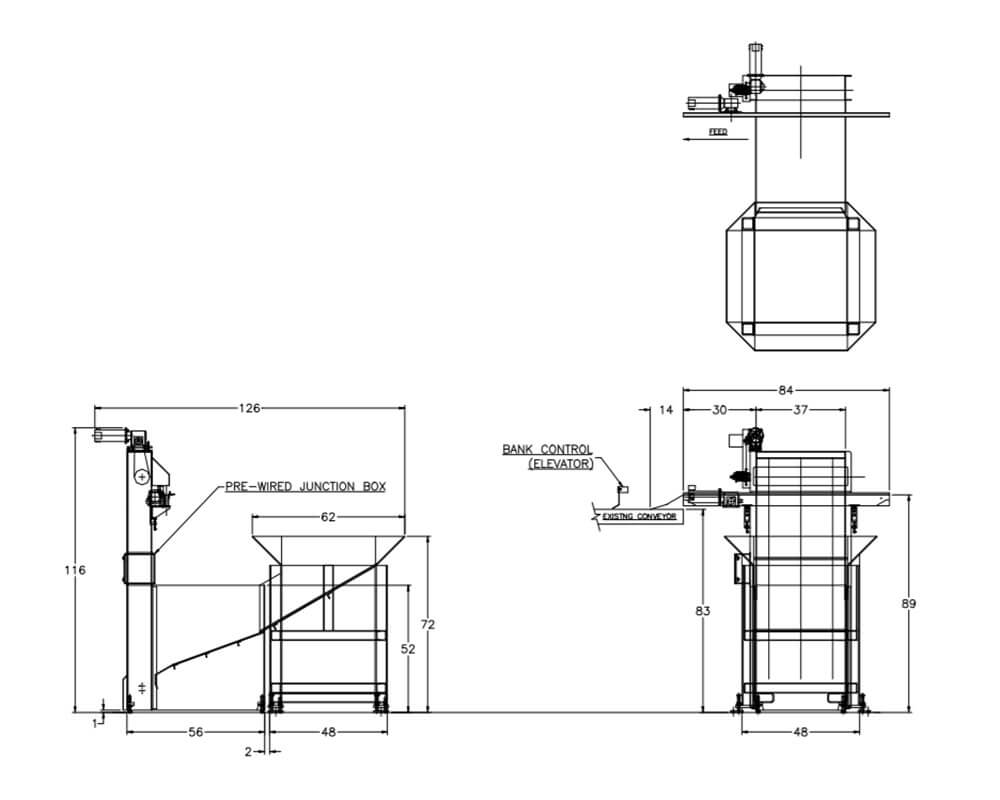

Model 3600 Elevating Hopper Feeder w/1650-80RC-84 Cross-Feed Conveyor

APPLICATION

Feed from a random loaded, floor mounted hopper, Steel billets. Billets are vertically elevated from the hopper and discharged in a continuous stream onto a roller chain conveyor.

WIDTH

36” Wide Elevating Belt

DRIVE

1-1/2 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (1.04”-1.956”Ø x 1.65”-4.55” Lg.)

FEED RATE

90 inches/minute
