CASE STUDY

17492: PROJECT FEEDING SUSPENSION BUSHING INNER METAL TUBES INTO ROLL COATER

Feedall Model

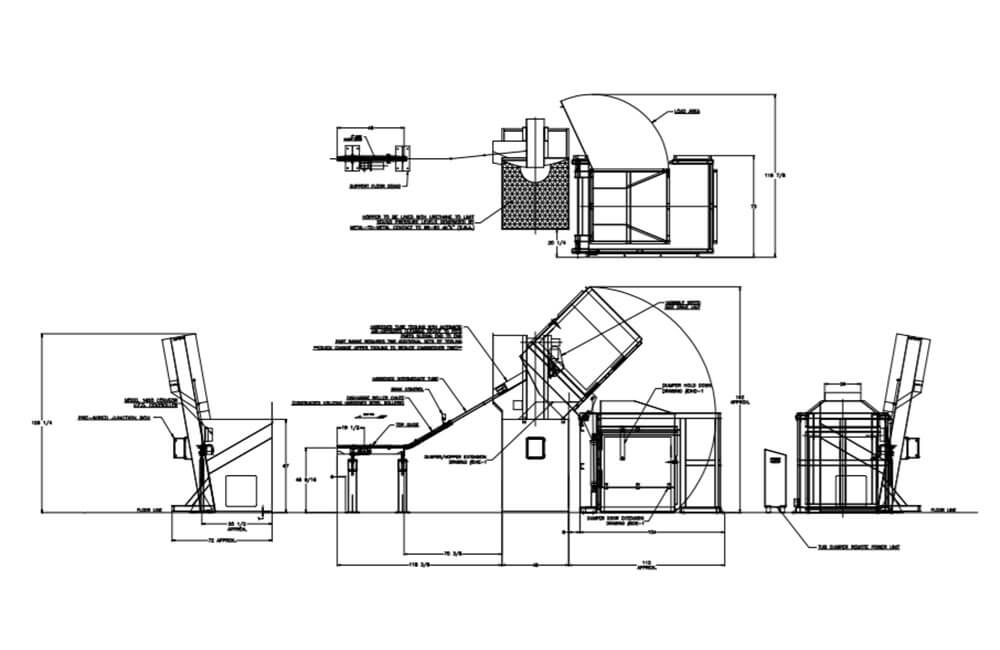

Model 2500-C Elevating Hopper Feeder w/1650-1SC-48 Entrance Conveyor & BCD-53-68-3,000# Hydraulic Tub Dumper

APPLICATION

Feed from a random loaded, floor mounted hopper. The metal tubes will be elevated from the hopper via a cleated belt and fed oriented in a continuous end to end stream with axis horizontal onto existing conveyor.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Suspension Bushing Inner Metal Tubes (17.30mm-34.00Ø x 31.90mm-90.50mm Lg.)

FEED RATE

225 Parts/Minute
