CASE STUDY

17197: PROJECT FEEDING PISTON INPUT DIE CASTINGS INTO MACHINING CENTER

Feedall Model

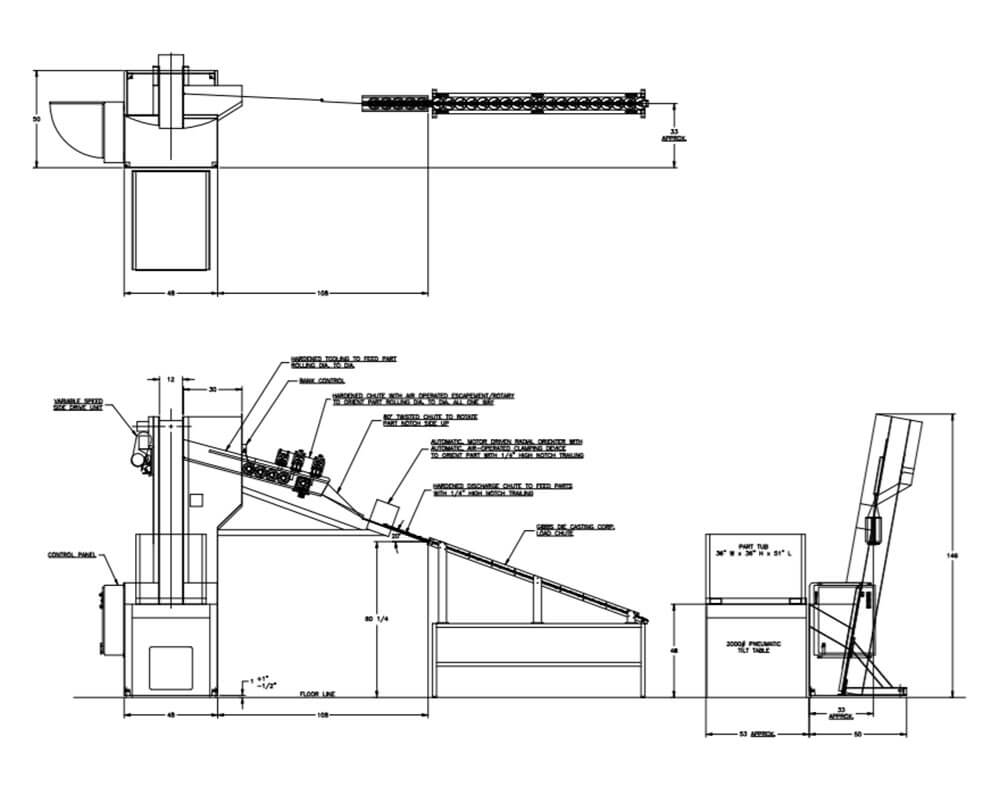

Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Die Castings will be elevated from the hopper via a cleated belt and discharged rolling diameter to diameter. The parts will then be radial oriented by a raised notch within 4-5 degrees and rotated flat with notches up.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Piston Input Die Castings (6.14”Ø x 1.25” Lg.)

FEED RATE

10 Parts/Minute
