CASE STUDY

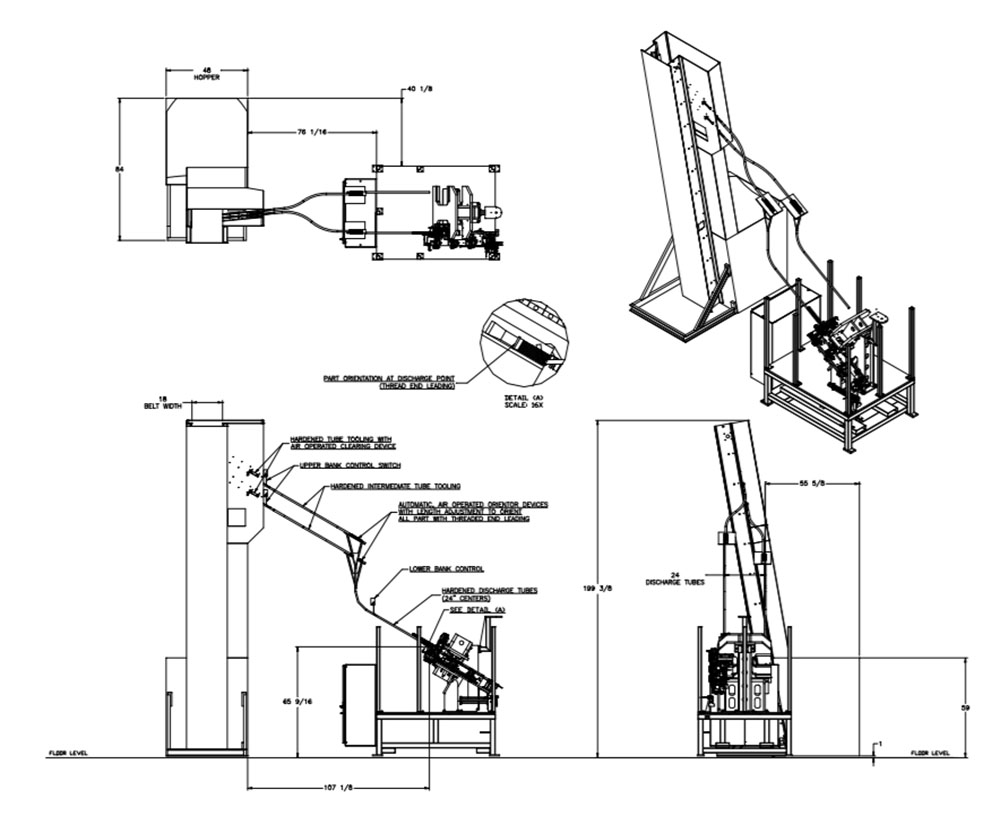

17176: PROJECT FEEDING THREADED STUDS INTO INSPECTION MACHINE

Feedall Model
Model 2600-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Studs will be elevated from the hopper via a cleated belt and discharged into two streams threaded end leading on a 30° angle.

WIDTH

18” Wide Elevating Belt

DRIVE

1 HP/AC Motor

PARTS FED (SIZE)

Threaded Studs (0.50”Ø x 2.75”-8.50” Lg.)

FEED RATE

30 Parts/Chute (60 Parts/Minute Total)
