CASE STUDY

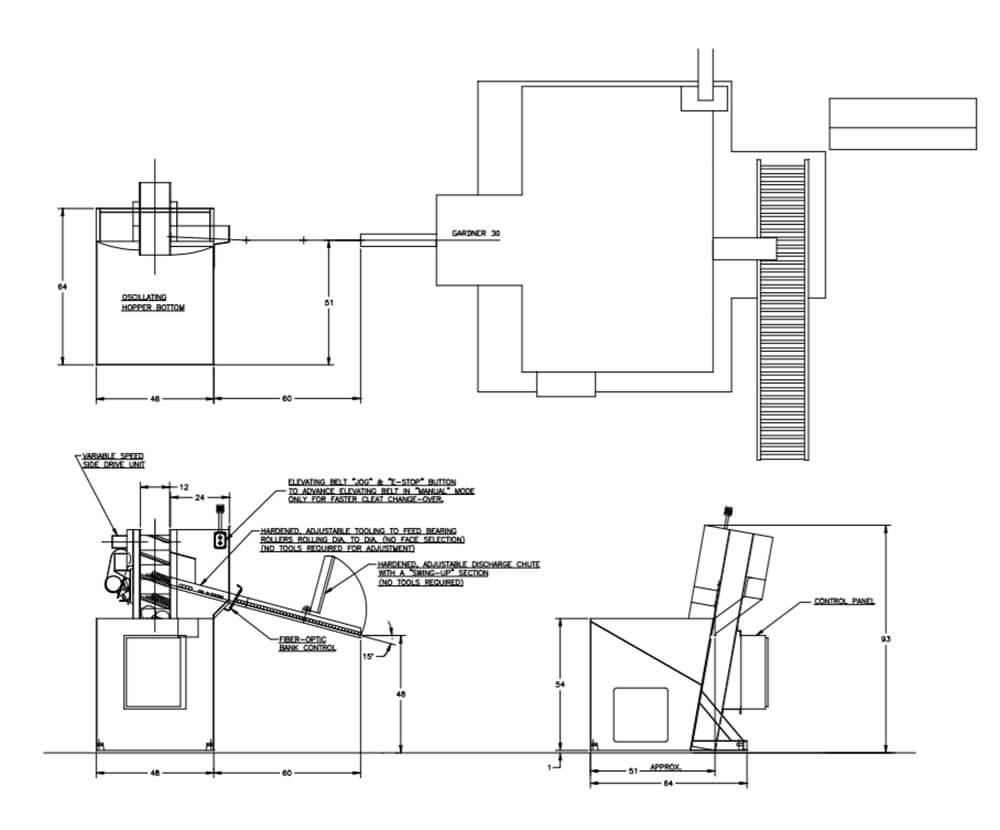

15941: PROJECT FEEDING BEARING RACES INTO DOUBLE DISC GRINDER

Feedall Model
Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded floor mounted hopper. The Inner and Outer Bearing Races will be elevated out of the hopper and discharged in a continuous diameter-to-diameter stream to the input chute of your Gardner Grinder.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Inner & Outer Bearing Races (25.68mm-127.25mmØ x 7.67mm-45.31mm Lg.)

FEED RATE

140” Inches/Minute
