CASE STUDY

13204: PROJECT FEEDING MOTOR SHAFTS INTO CENTERLESS GRINDER

Feedall Model
Model 1700 D and Model 1650 1 72 C/W Kick Off and Part Tray

APPLICATION

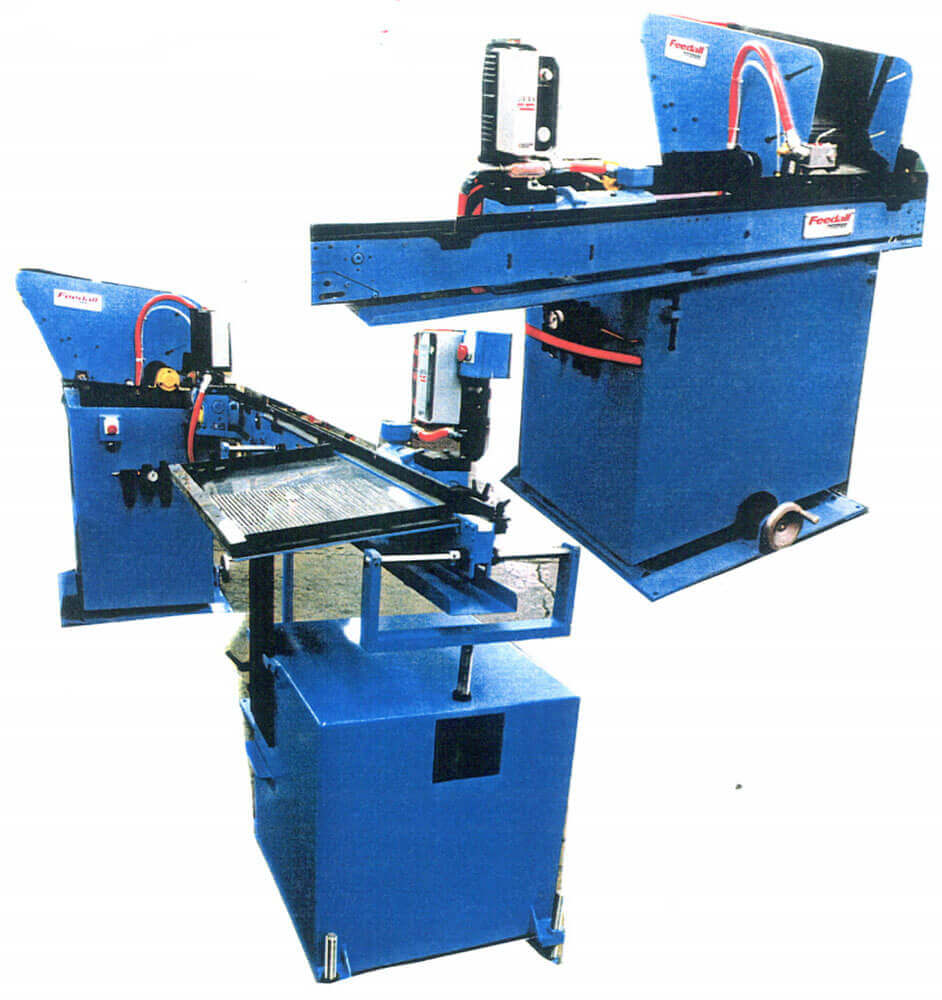

Feedall Standard Model 1700 D Magazine type shaft feeder. Bar/Shaft diameter range 1/4 to 1 1/4″, and lengths from 3 1/2 to 28″. Model 1650 with 1″ wide silent chain, 72″ LG.
Feedall Model 1650 1 72 exit conveyor with shaft kick off a block and part tray.
DWG. PD 9122
