CASE STUDY

10723: PROJECT FEEDING PIPE VISE LOCK NUTS INTO ASSEMBLY MACHINE

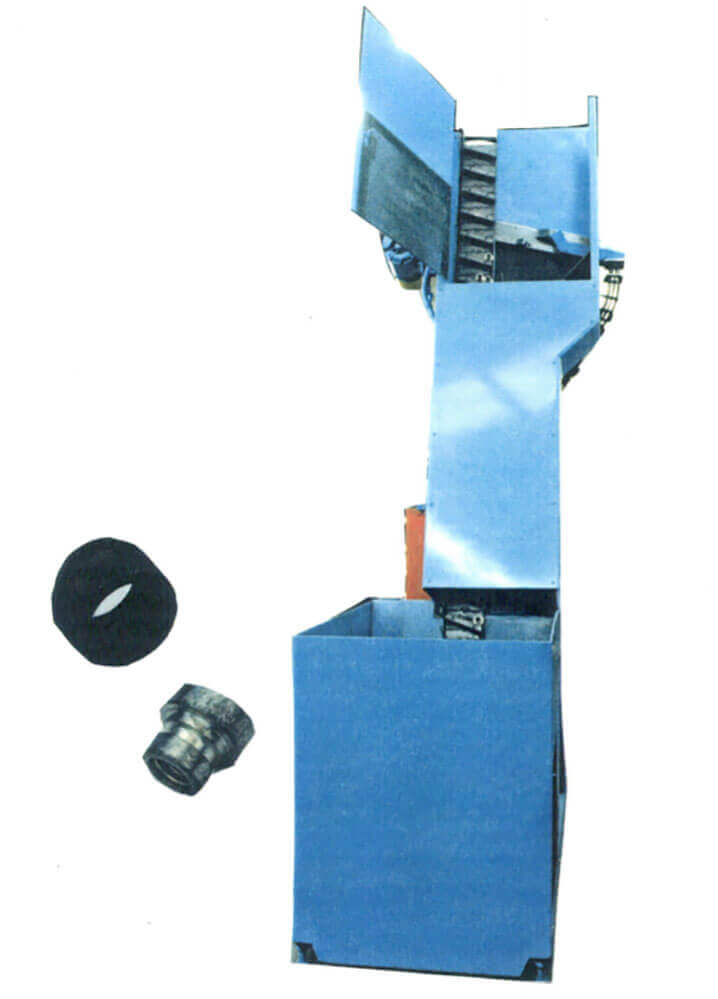

Feedall Model
Model 2400 C

APPLICATION

Feed from random loaded floor mounted hopper pipe vise lock nuts (various sizes). The nuts will be oriented and fed in a single sliding diameter to diameter axis vertical stream to height of 42″ above the floor to an assembly machine at a rate of 600 to 800 per hour.
6″ wide elevator belt, 6CU. FT. Hopper.
DWG. P 7491 R 2.

WIDTH

6" wide elevator belt

FEED RATE

600 to 800 per hour
