CASE STUDY

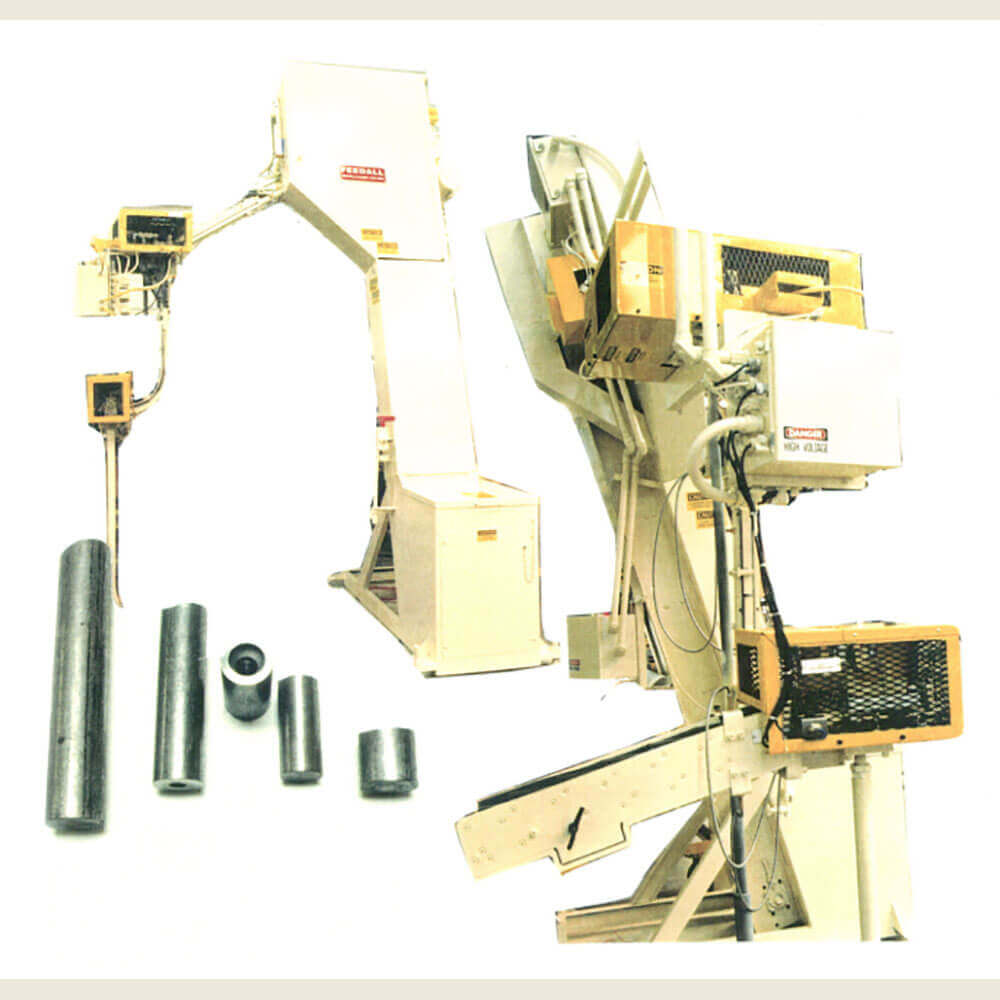

10618: PROJECT FEEDING STRUT TUBE ADAPTORS INTO FRICTION WELDER

Feedall Model
Model 2400 D

APPLICATION

Feed from a random loaded floor mounted hopper, strut tube adapters .709 to .985 “DIA. X 1.00 to 6.00 “LG. The parts will be elevated from the hopper then oriented end to end, then fed to as orienter and oriented with the counter bore and internal chamfered end facing above the floor at a rate of 400 to 500 per hour. 7 1/2” wide elevator, 3 CU. FT. Hopper/ DWG. P 7388 R 4.

WIDTH

7 1/2" wide elevator

FEED RATE

400 to 500 per hour
