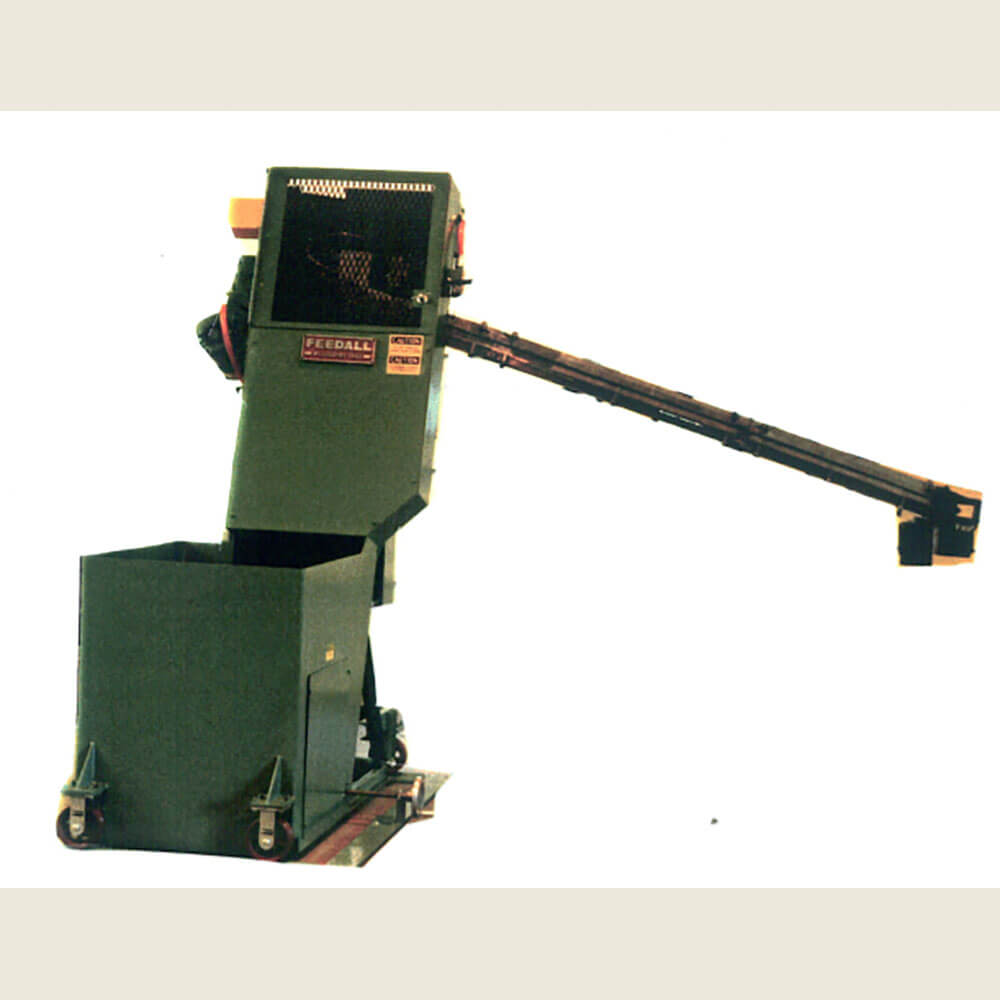

10127: PROJECT FEEDING VALVE SEAT INSERTS INTO CENTERLESS GRINDER
Model 2400 D
Feed from a random loaded floor mounted hopper valve seat inserts 15/16 to 2 1/4″ dia. C 3/16 to 3/8 thick. The inserts will be oriented rolling diameter to diameter then fed to feed rolls on a centerless grinder at 42 3/4″ above the floor, at a rate of 3000 to 4000 per hour.
7 1/2″ wide elevator belt, CU. FT. hopper. DWG. P 6852
WIDTH7 1/2" wide elevator belt
FEED RATE3000 to 4000 per hour
