CASE STUDY

17839: PROJECT FEEDING STEEL TUBES INTO END FINISHER

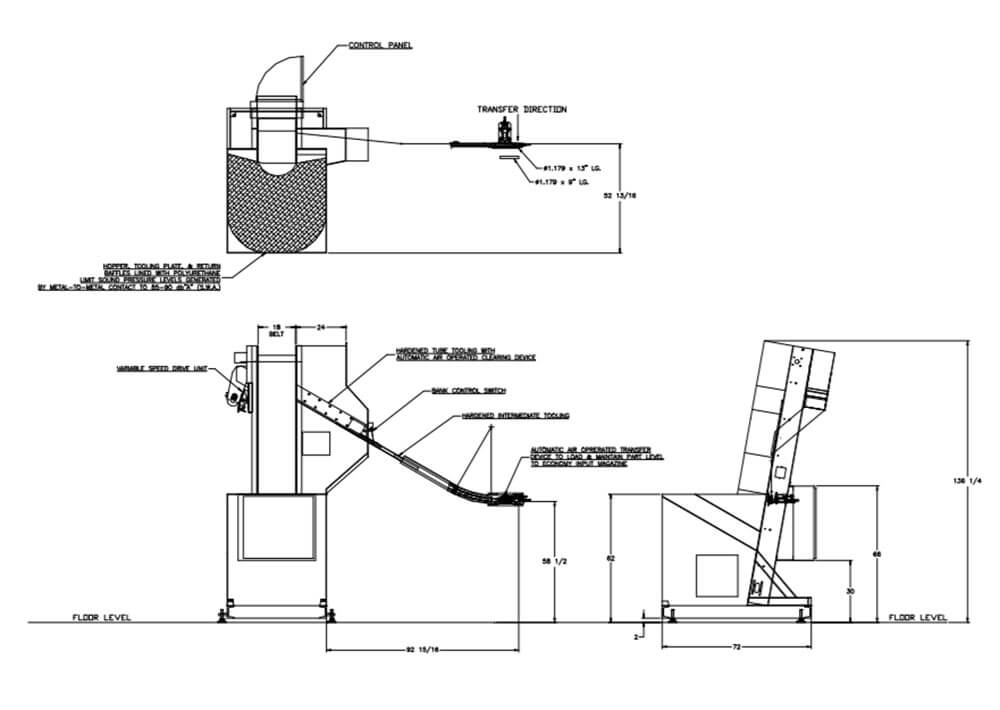

Feedall Model
Model 2600-C Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Steel Tubes will be elevated from hopper via a cleated belt and discharged in a continuous end to end stream to a transfer device.

WIDTH

18” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steel Tubes (1.179”Ø x 9.00”-13.00” Lg.)

FEED RATE

20 Parts/Minute
