CASE STUDY

17569: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

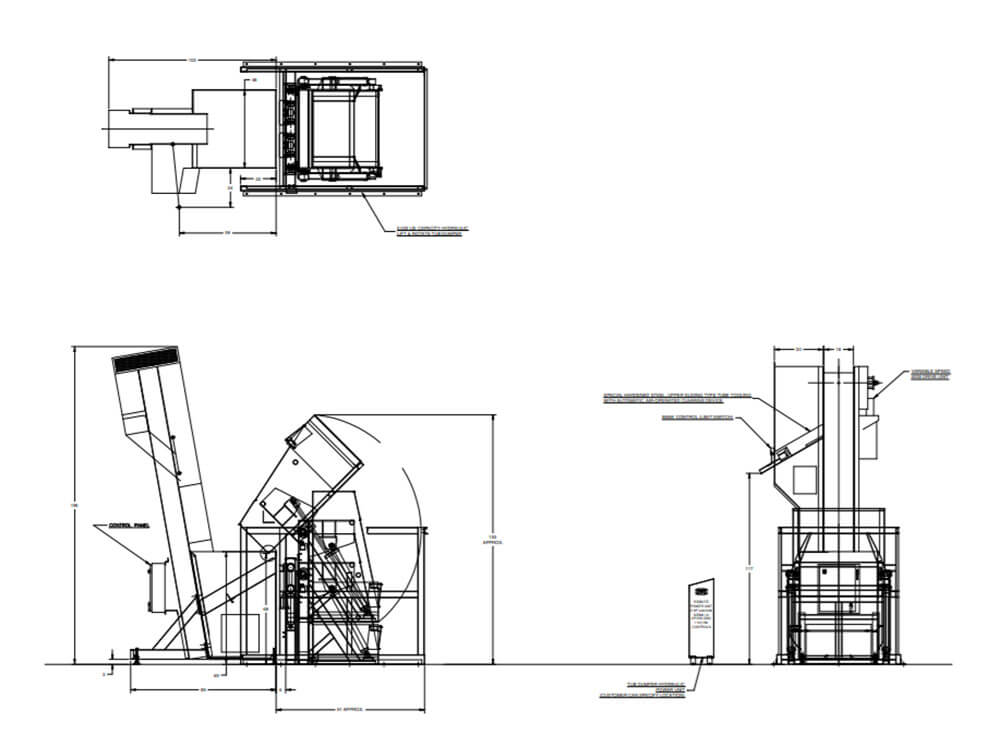

Model 2600-HD Elevating Hopper Feeder w/TC-HD-40-68-5,000# Hydraulic Tub Dumper

APPLICATION

Feed from a random loaded, floor mounted hopper. The blanks will be elevated from the hopper via a cleated belt and discharged sliding in a continuous end to end stream in a stub chute to a customer supplied conveyor.

WIDTH

18” Wide Elevating Belt

DRIVE

2 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (1.880”-2.436”Ø x 2.358”-8.84” Lg.)

FEED RATE

2,100 Parts/Hour (35 Parts/Minute)
