CASE STUDY

17543: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

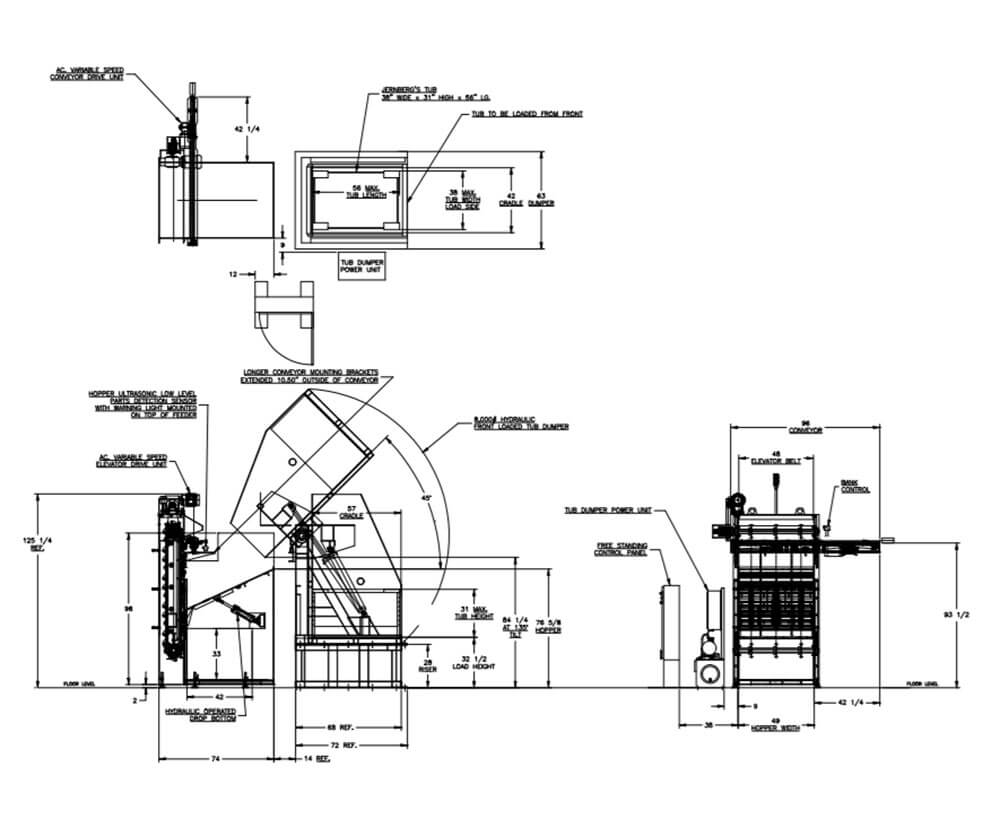

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor & TC-56-74-8,000# Hydraulic Tub Dumper

APPLICATION

Parts will be dumped from a floor mounted tub dumper into a floor mounted hopper. The billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream into customer’s forging press.

WIDTH

48” Wide Elevating Belt

DRIVE

3 HP/AC Motor

PARTS FED (SIZE)

Sheared Steel Billets (1.875”-2.50”Ø x 4.00”-7.00” Lg.)

FEED RATE

18 Parts/Minute
