CASE STUDY

17435: PROJECT FEEDING NUT WRENCH TUBES INTO ASSEMBLY MACHINE

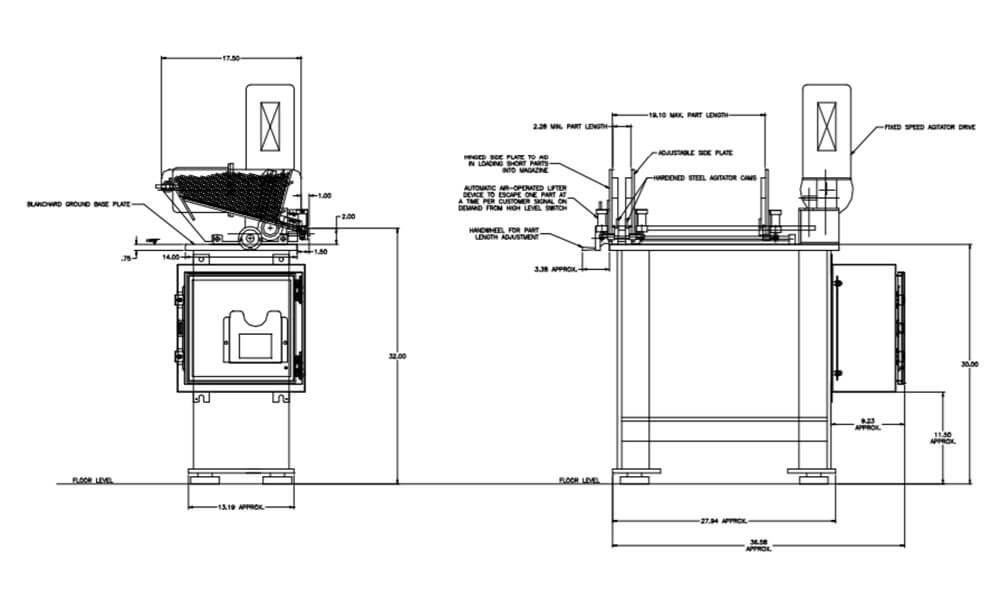

Feedall Model
Model 1750 Magazine Bar Feeder

APPLICATION

Feed bars from a manually loaded, floor mounted magazine. Steel Tubes will be fed in a continuous stream and escaped one at a time rolling onto a front mounted cross-feed conveyor and fed in a continuous end to end stream.

WIDTH

2.28”-19.10” (Adjustable)

DRIVE

1/6 HP/AC Motor

PARTS FED (SIZE)

Nut Wrench Tubes (0.25”-0.56”Ø x 2.28”-19.10” Lg.)

FEED RATE

5 Parts/Minute
