17216: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

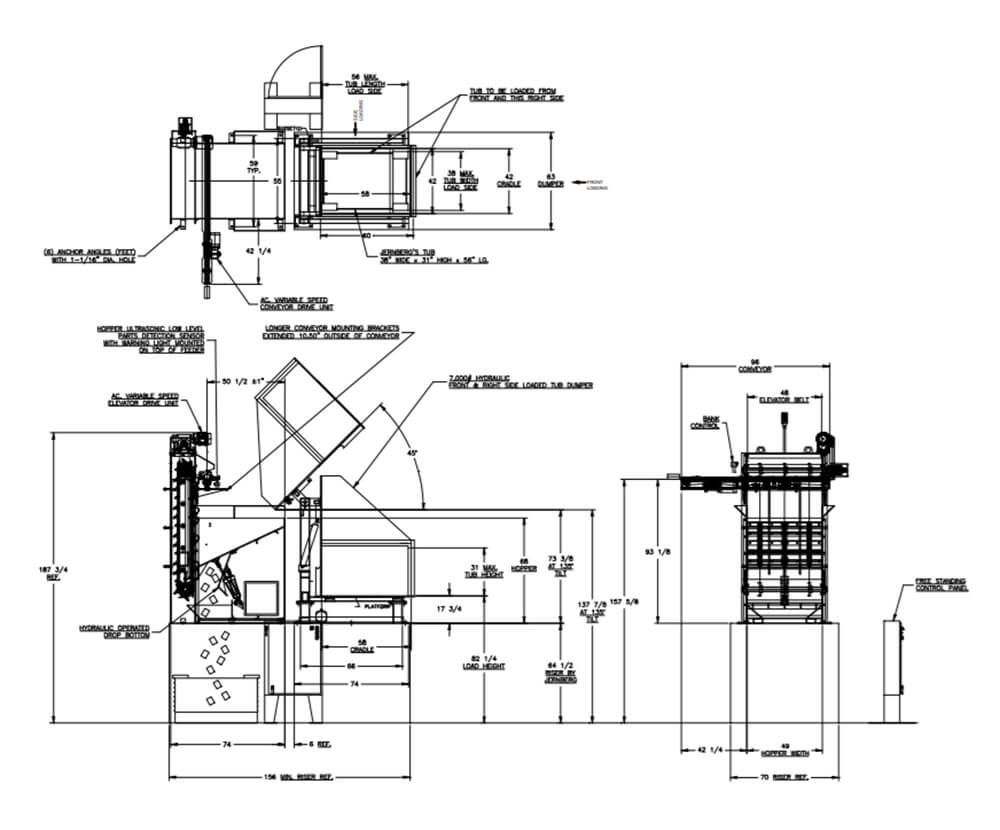

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor & SD-60-70-7,000# Hydraulic Tub Dumper
Feed from a random loaded floor mounted hopper. The billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream onto a model 1650 conveyor.
WIDTH48” Wide Elevating Belt
DRIVE3 HP/AC Motor
PARTS FED (SIZE)Steel Billets (Part Matrix)
FEED RATE16 Parts/Minute
