CASE STUDY

17102: PROJECT FEEDING UNIVERSAL JOINT BEARING CUPS INTO ID GRINDER

Feedall Model

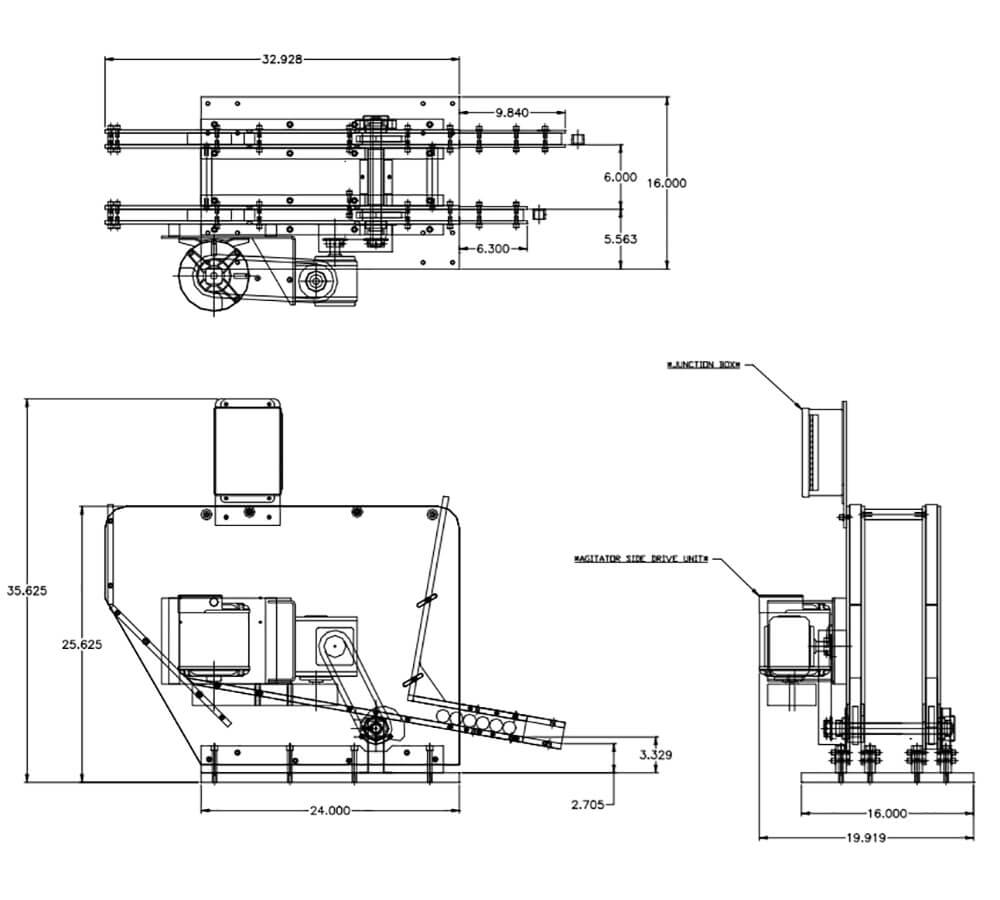

Model 1700-B Magazine Bar Feeder

APPLICATION

Feed from a manually loaded, floor mounted magazine with two lanes. Then the Bearing Cups will be loaded into a magazine at the top by customer and discharged in a continuous stream.

DRIVE

1/4 HP/AC Motor

PARTS FED (SIZE)

Universal Joint Bearing Cups (1.184”-1.197”Ø x 0.823”-1.037” Lg.)

FEED RATE

1 Part/Lane Every 3 Seconds
