16946: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

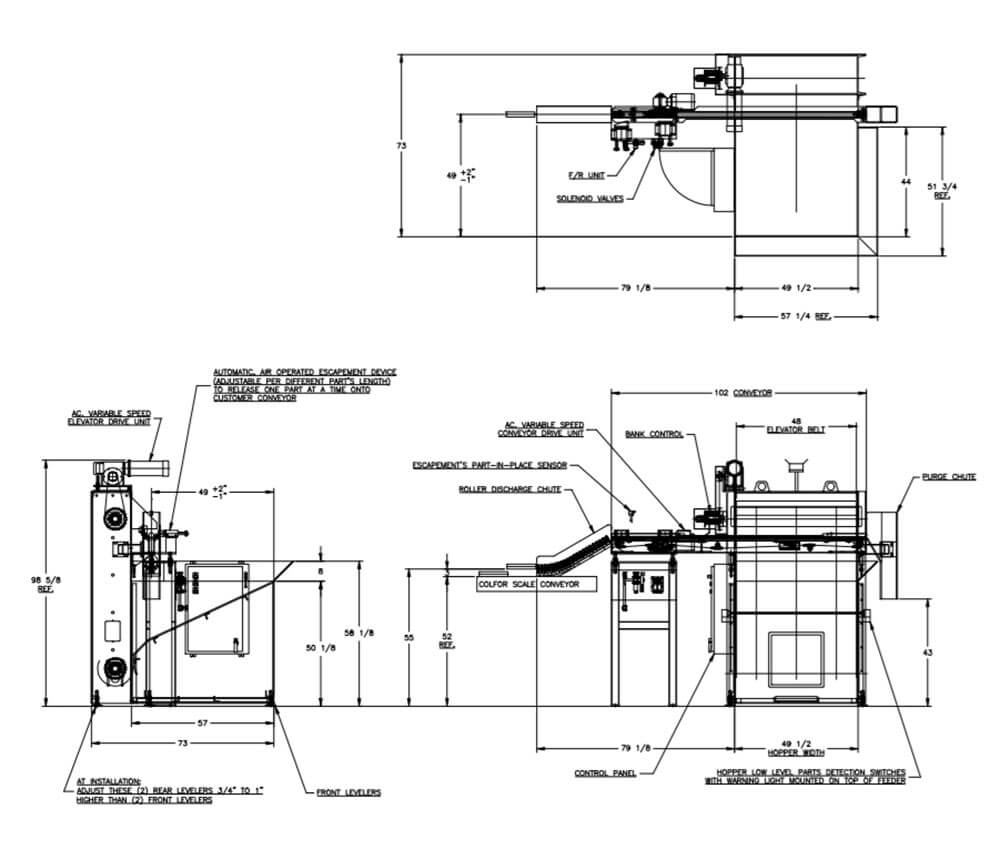

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-102 Cross-Feed Conveyor
Feed from a random loaded, floor mounted hopper. The Steel Billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will transfer the parts in a continuous stream onto customers input conveyor of a press.
WIDTH48” Wide Elevating Belt
DRIVE1-1/2 HP/AC Motor
PARTS FED (SIZE)Steel Billets (2.00”-5.00”Ø x 4.00”-11.50” Lg.)
FEED RATE10 Parts/Minute
