CASE STUDY

16858: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

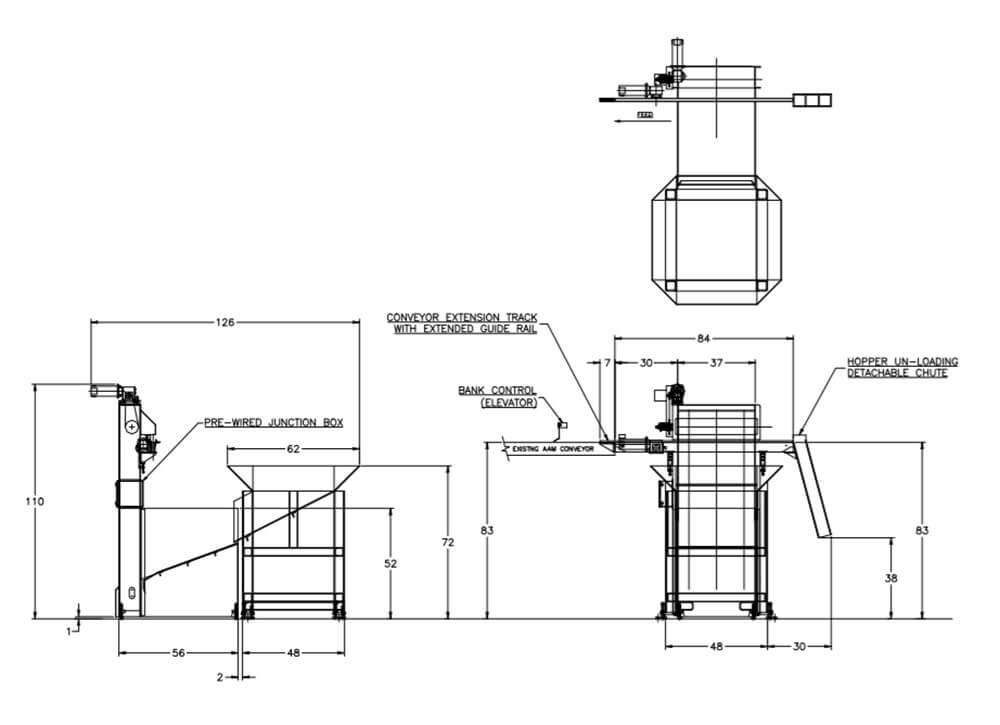

Model 3600 Elevating Hopper Feeder w/1650-80RC-84 Cross-Feed Conveyor

APPLICATION

Feed from a random loaded, floor mounted hopper. Parts are vertically elevated from the hopper and discharged in a continuous stream onto an existing roller chain conveyor.

WIDTH

36” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (1.04”-1.96”Ø x 1.61”-4.68” Lg.)

FEED RATE

90 Inches/Minute
