16775: PROJECT FEEDING STEEL BARS INTO INDUCTION HEATER

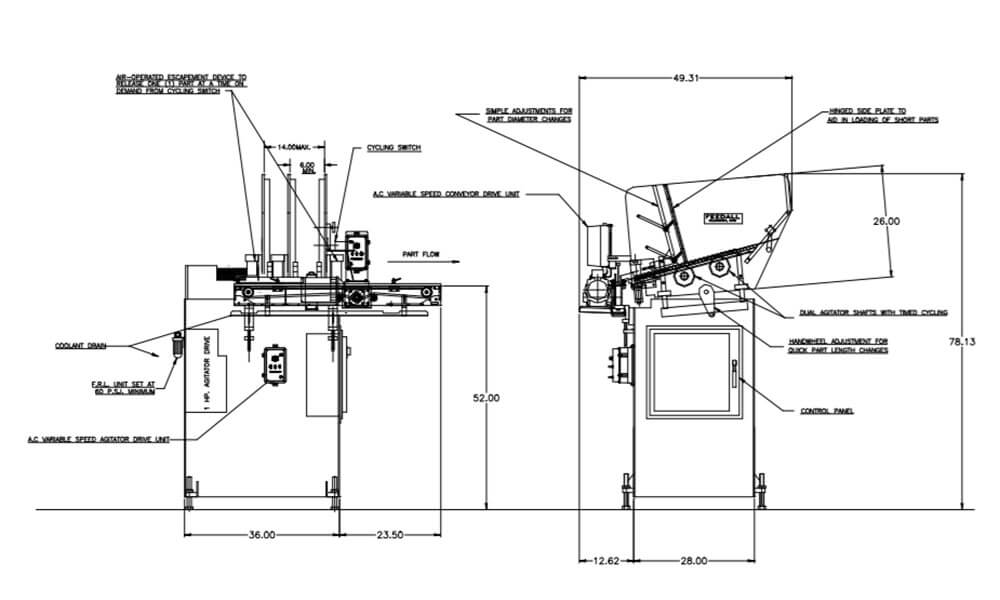

Model 1700-224 Magazine Bar Feeder w/1650-1SC-48 Cross-Feed Conveyor
Feed from a manually loaded, floor mounted magazine. The Sheared Steel Bars will be escaped rolling into your V-nest, one at a time per each signal given by the machine being fed.
DRIVE1 HP/AC Motor w/Variable Frequency Controller
PARTS FED (SIZE)Sheared Steel Billets (0.50”-1.125”Ø x 6.313”-14.00” Lg.)
FEED RATE10 Parts/Minute
