CASE STUDY
16696: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

Feedall Model

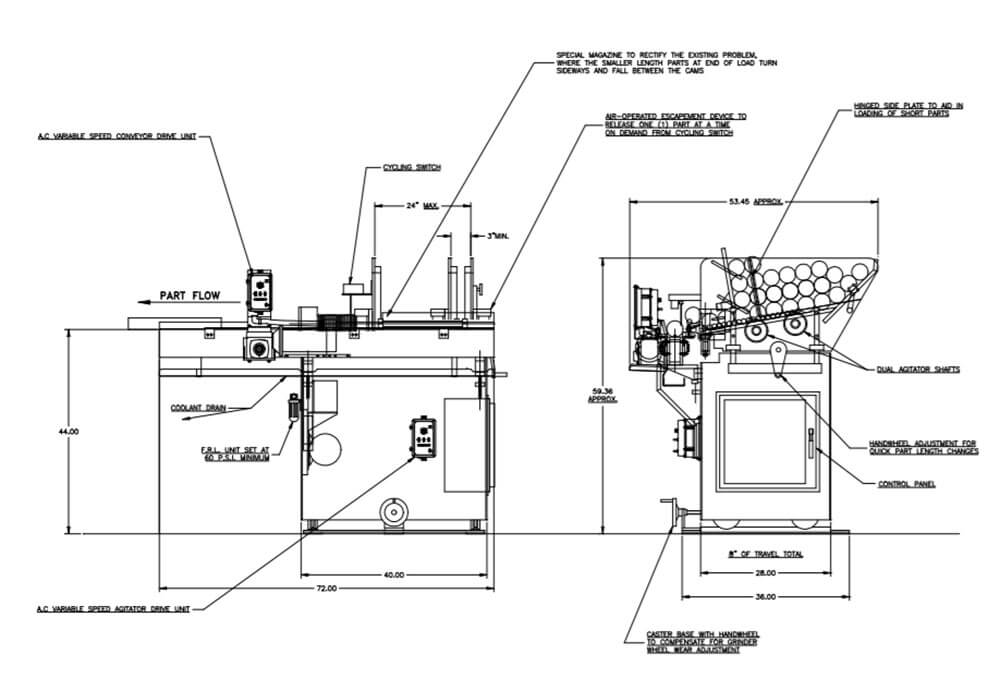

Model 1700-424 Magazine Bar Feeder w/1650HD-2SC-72 Cross-Feed Conveyor
APPLICATION
Feed from a manually loaded magazine. The Steel Pins parts will be fed in a continuous end-to-end stream to a CINCINNATI #2 EA Centerless Grinder.
WIDTH
3”-24” (Adjustable)DRIVE
1/2 HP/AC Motor w/Variable Frequency ControllerPARTS FED (SIZE)
Steel Shafts (0.50”-3.50”Ø x 3.00”-24.00” Lg.)FEED RATE
4 Parts/Minute
