CASE STUDY

17717: PROJECT FEEDING STEEL SHAFTS INTO CENTERLESS GRINDER

Feedall Model

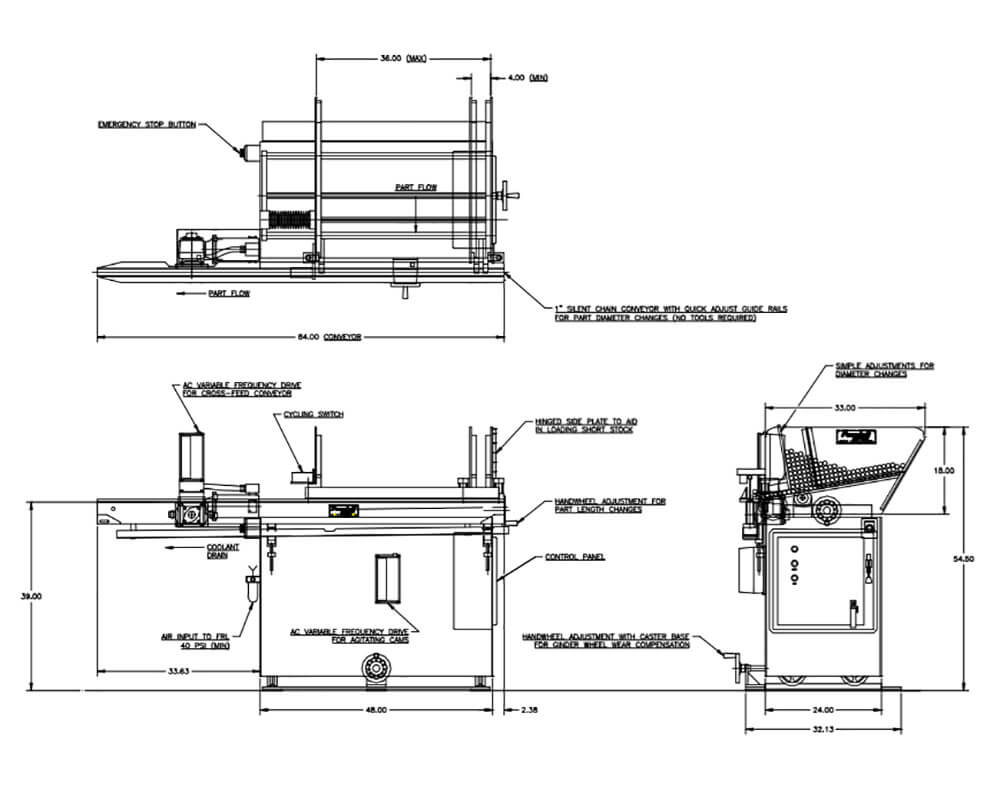

Model 1700-D Magazine Bar Feeder w/1650-1SC-84 CrossFeed Conveyor

APPLICATION

Feed from a manually loaded, floor mounted magazine. Shafts will be fed in a continuous stream and escaped one at a time onto a front mounted cross-feed conveyor. The conveyor will translate parts in a continuous stream to the workrest of a CINCINNATI centerless grinder.

WIDTH

4”-36” (Adjustable)

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Shafts (0.50”-1.25”Ø x 4.00”-36.00” Lg.)
