CASE STUDY

17640: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

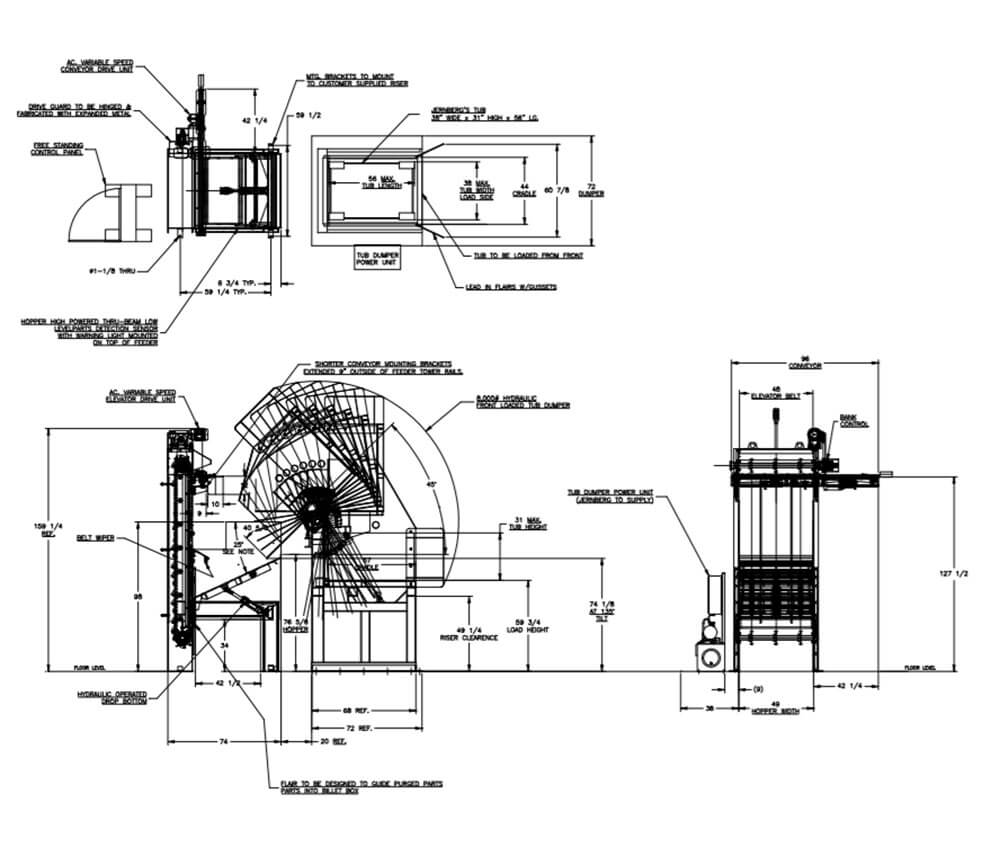

Model 4800 Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor & TC-56-43-8,000# Hydraulic Tub Dumper

APPLICATION

Feed from a random loaded floor mounted hydraulic tub dumper. The billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream into a forging press.

WIDTH

48” Wide Elevating Belt

DRIVE

3 HP/AC Motor

PARTS FED (SIZE)

Sheared Steel Billets (2.63”-4.13”Ø x 5.82”-20.63” Lg.)

FEED RATE

5-15 Parts/Minute
