CASE STUDY

17215: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model

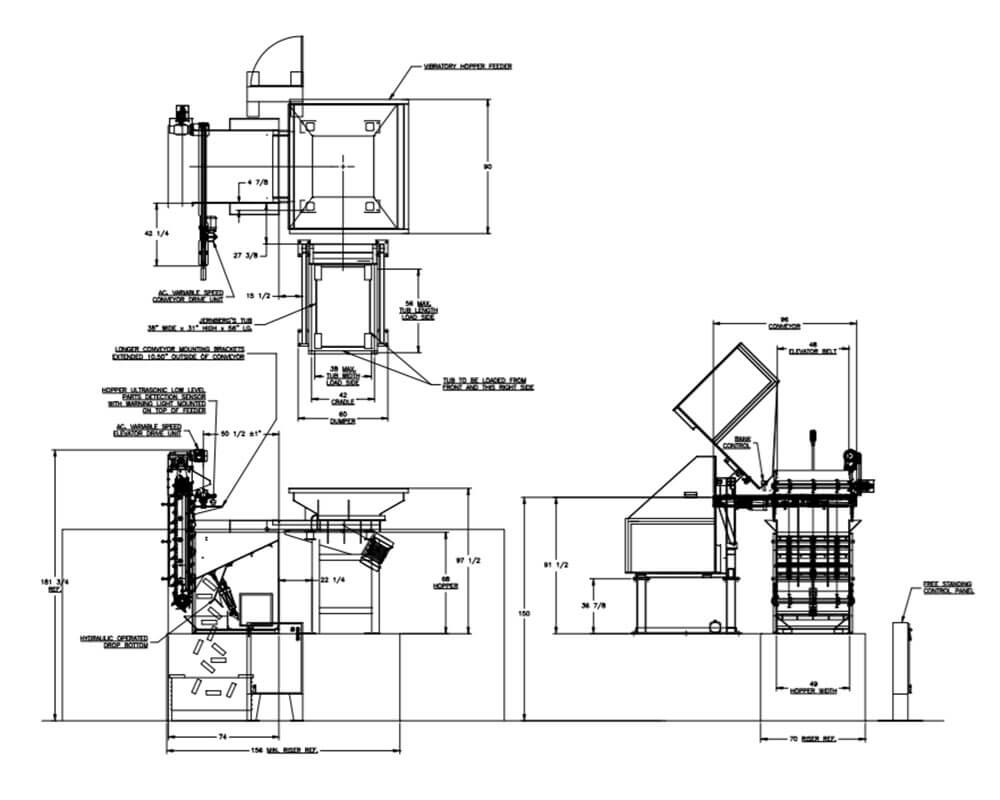

Model 4800-HD Elevating Hopper Feeder w/1650-80RC-96 Cross-Feed Conveyor, 6,000# Vibratory Metering Hopper & SD-60-70-7,000# Hydraulic Tub Dumper

APPLICATION

Feed from a random loaded floor mounted hopper. The billets will be elevated from the hopper via cleated belt and deposited onto a cross-feed conveyor. The conveyor will translate the parts in a continuous stream onto a model 1650 conveyor.

WIDTH

48” Wide Elevating Belt

DRIVE

3 HP/AC Motor

PARTS FED (SIZE)

Steel Billets (Part Matrix)

FEED RATE

10-15 Parts/Minute
