CASE STUDY

9336: SN 9335 Model 2400 C (3) and 2500 C (3) Terr. 8, 4/84

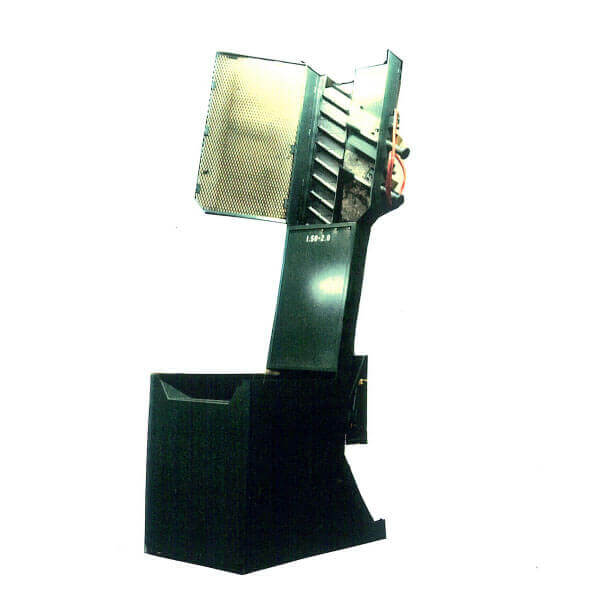

Angled elevator feeder Feedall 2500-C

APPLICATION

Feed from six random-loaded floor mounted hoppers, conduit couplings, 1/2, 3/4, 1, 1 1/4, 1 1/2 and 2″ pipe size. Elevate, then orient end-to-end into two individual vertical chutes to a height of 52″ above the floor at a rate of 420 to 660 per hour for sizes 1/2 to 1″ and 220 to 320 per hour for sizes 1 1/4 to 2″.

Note: The 2400 feeders fed the smaller range and the 2500 C the larger. The feeders were equipped with dual on-demand tube tooling; these machines were feeding auto tappers.

2400C 6″ wide elevator belt, 12 cu. ft. hopper
2500C 12″ wide elevator belt, 12 cu. ft. hopper

Dwg. p 6248 R 2400 C
Dwg. P 6251 R 2500 C
