CASE STUDY

9336: PROJECT FEEDING CONDUIT COUPLINGS INTO TAPPING MACHINE

Feedall Model
Model 2400 C (3) & 2500 C (3)

APPLICATION

Feed from six random loaded floor mounted hoppers, conduit couplings, 1/2, 3/4, 1, 1 1/4, 1 1/2 and 2″ pipe size. Elevate then orient end to end into two individual vertical chutes to a height of 52″ above the floor at a rate of 420 to 660 per hour for sizes 1/2 to 1″ and 220 to 320 per hour for sizes 1 1/4 to 2″.
Note: the 2400C feeders fed the smaller range and the 2500C the larger. The feeders were equipped with dual on demand tube tooling, these machines were feeding auto tappers.

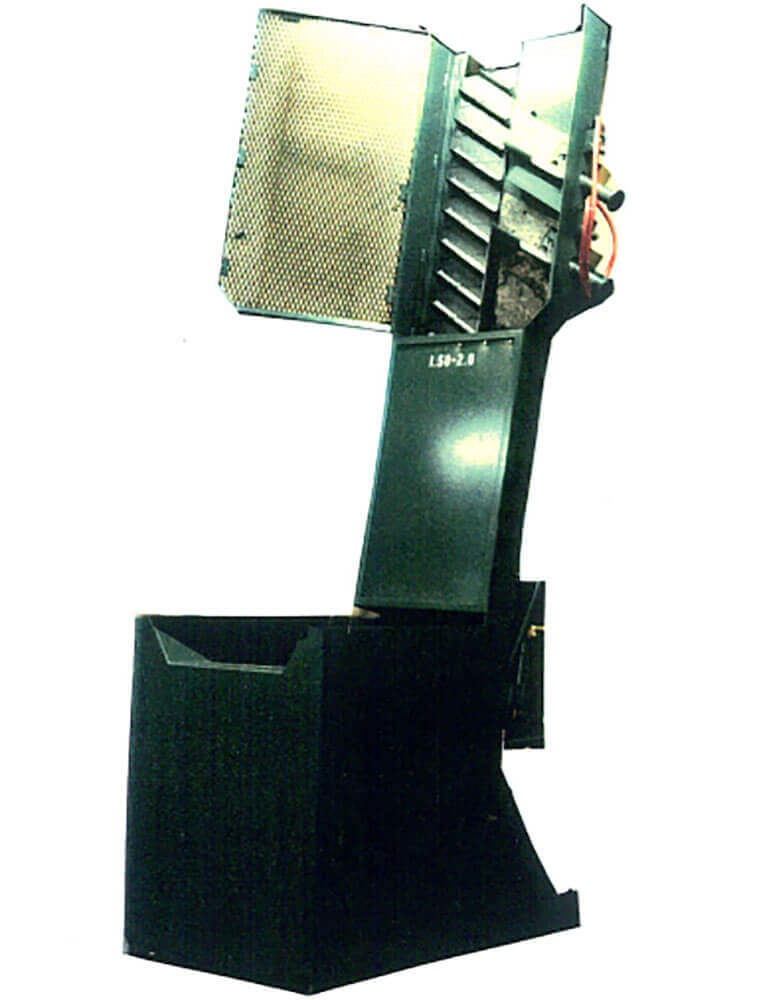

2400C 6″ wide elevator belt, 12 CU. FT. Hopper.
2500 12″ wide elevator belt, 12 CU. FT. Hopper.
DWG. P 6248 R 2400C
DWG. P 6251 R 2500C

WIDTH

2400C 6" wide elevator belt
2500 12" wide elevator belt

FEED RATE

420 to 660 per hour for sizes 1/2 to 1"
220 to 320 per hour for sizes 1 1/4 to 2
