CASE STUDY

20263: Project Presenting Oriented Tubes to Welding Robot

Feedall Model
2214 Elevator with 1650 Lateral Conveyor Customer: PIA Automation

APPLICATION

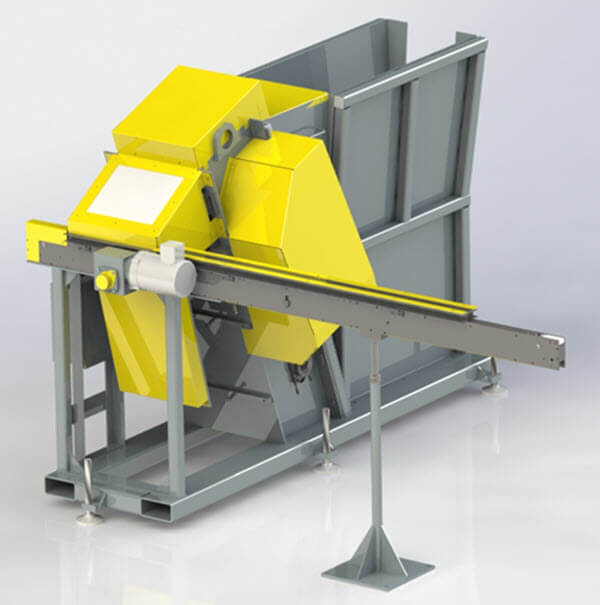

Receive Machined Tubes via a sling-borne bundle into a custom tapered hopper.  Tubes are separated from hopper via advancing cleats, then lifted and deposited onto escapement ramp.  An air cylinder lifts a single tube onto the lateral conveyor where it is transferred to a nest for pickoff by a welding robot.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Machined tubes (43mmØ x 211.99mm” Long)

FEED RATE

8 Parts/Minute
