CASE STUDY

18079: PROJECT FEEDING CROSSHEAD PINS INTO CENTERLESS GRINDER

Feedall Model

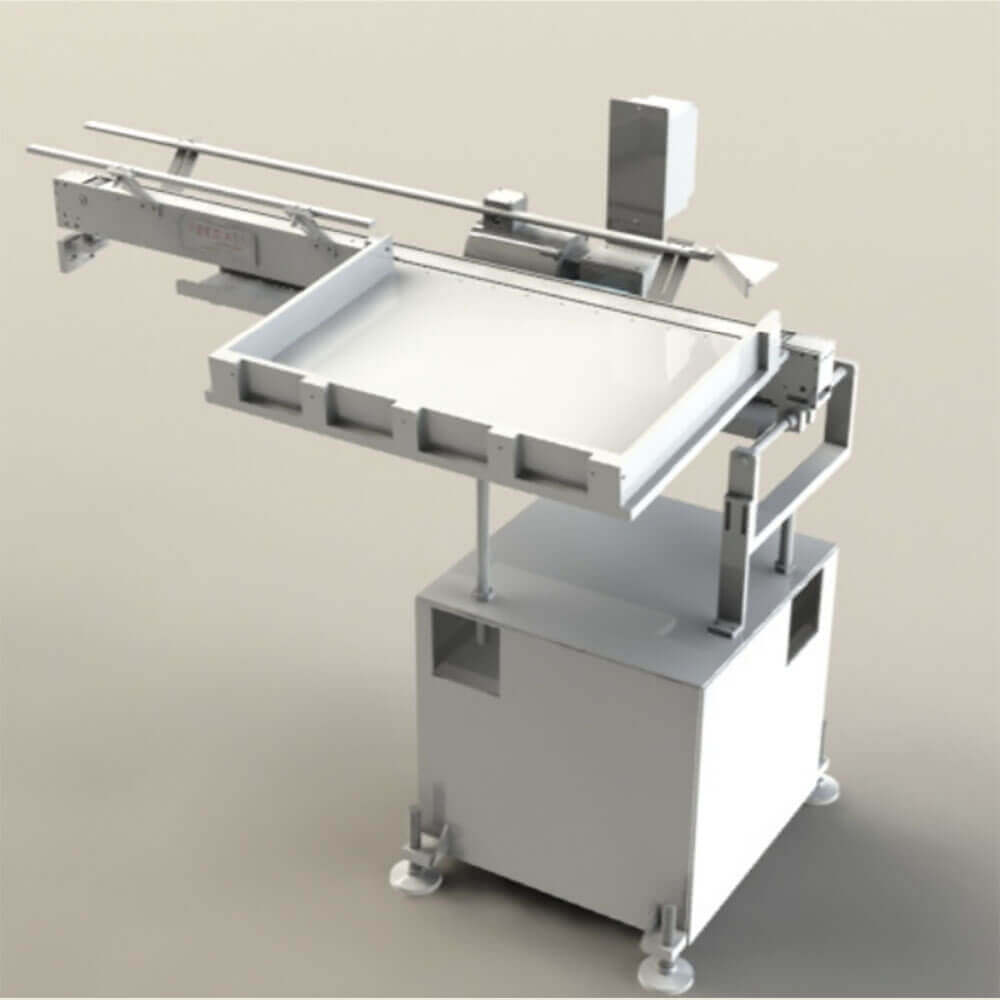

Model 1650-2PB-72 Exit Conveyor

APPLICATION

Convey Crosshead Pins from the workrest of a CINCINNATI Model 360-20 DE Centerless Grinder to a cam-off device into an adjustable accumulation tray.

WIDTH

1” Wide Polyurethane Timing Belt

DRIVE

1/2 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Crosshead Pins (2.00”-6.25”Ø x 4.0”-12.19” Lg.)

FEED RATE

1-50 feet/minute
