CASE STUDY

18022: PROJECT FEEDING STEEL SPACERS INTO ROBOT

Feedall Model

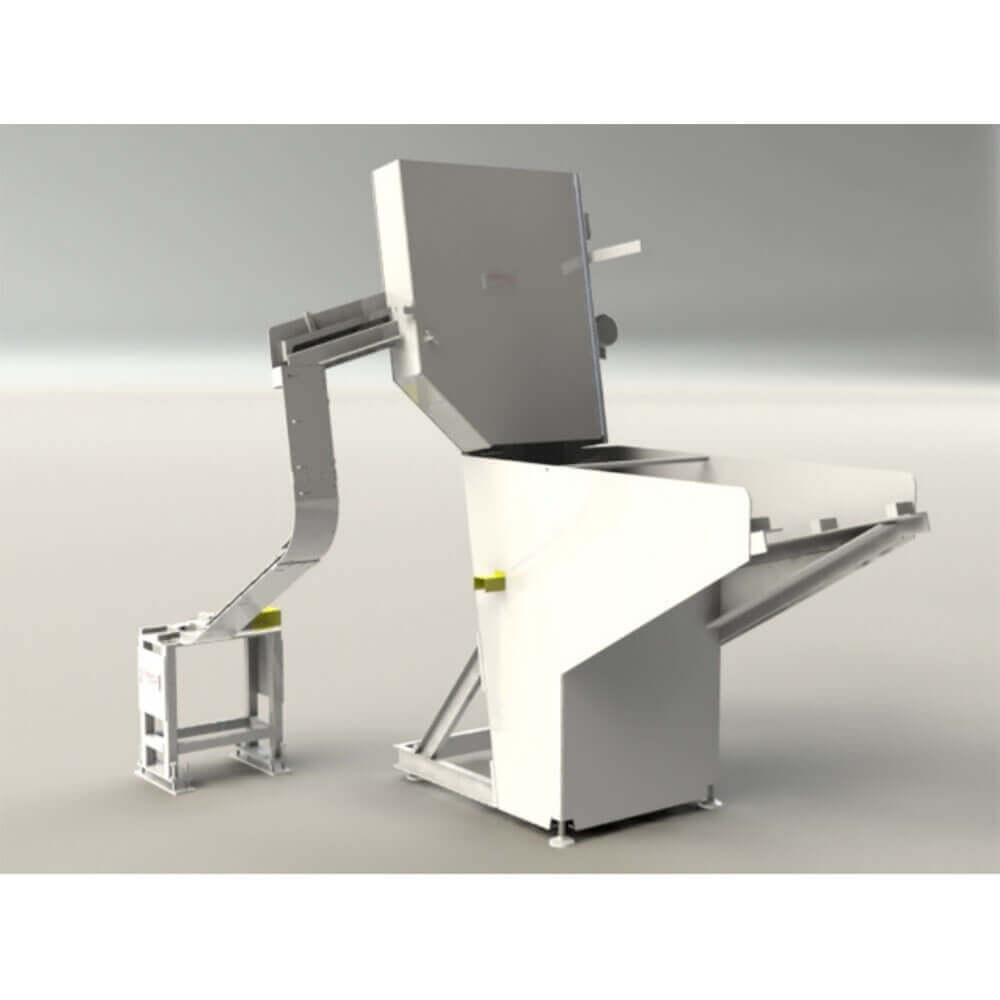

Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper, Saw-Cut Steel Spacers. Spacer will be elevated from hopper via a cleated belt, oriented in a continuous, diameter-todiameter stream and fed to an air-operated transfer device. The transfer device will escape one part at a time into a qualified Robotic pick-off nest.

WIDTH

12” Wide Elevating Belt w/Cleats Welded to Suit

DRIVE

3/4 HP Motor with 230/460/3/60 Volt-Phase-Cycle

PARTS FED (SIZE)

Steel Spacers (4.00”Ø x 2.38” Lg.)

FEED RATE

6 Parts/Minute
