CASE STUDY

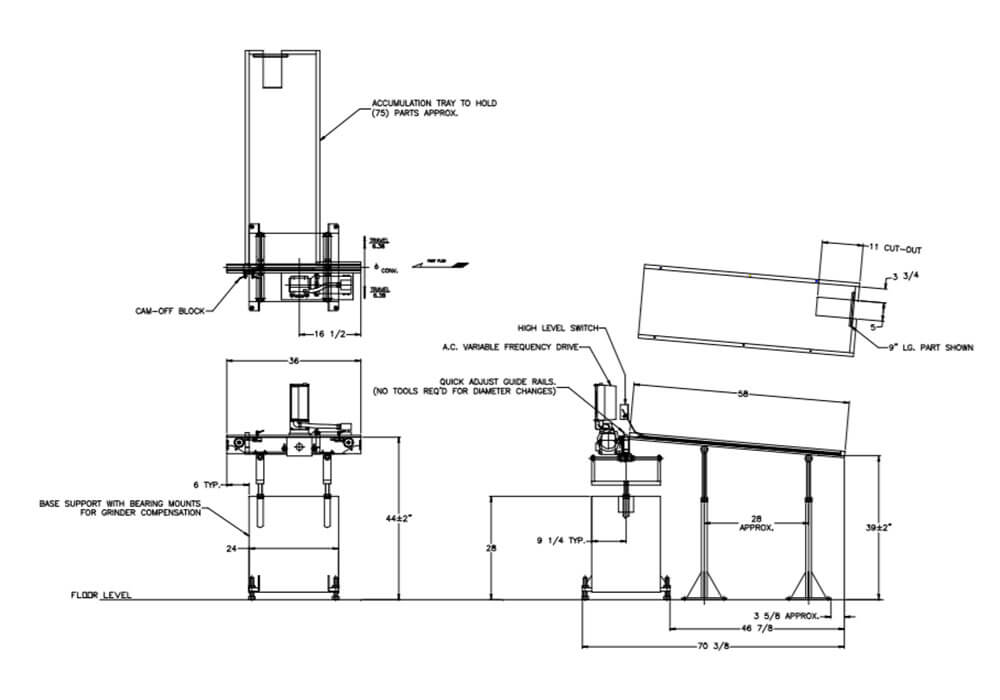

17857: PROJECT FEEDING AGITATOR SHAFTS INTO CENTERLESS GRINDER

Feedall Model
Model 1650-1PB-36 Exit Conveyor

APPLICATION

Convey Agitator Shafts from a Centerless Grinder to a cam-off accumulation ramp.

WIDTH

1” Polyurethane Timing Belt

DRIVE

1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Agitator Shafts (0.75”Ø x 9.88”-16.22” Lg.)

FEED RATE

1-50 Feet/Minute
