CASE STUDY

17831: PROJECT FEEDING AGITATOR SHAFTS INTO CENTERLESS GRINDER

Feedall Model

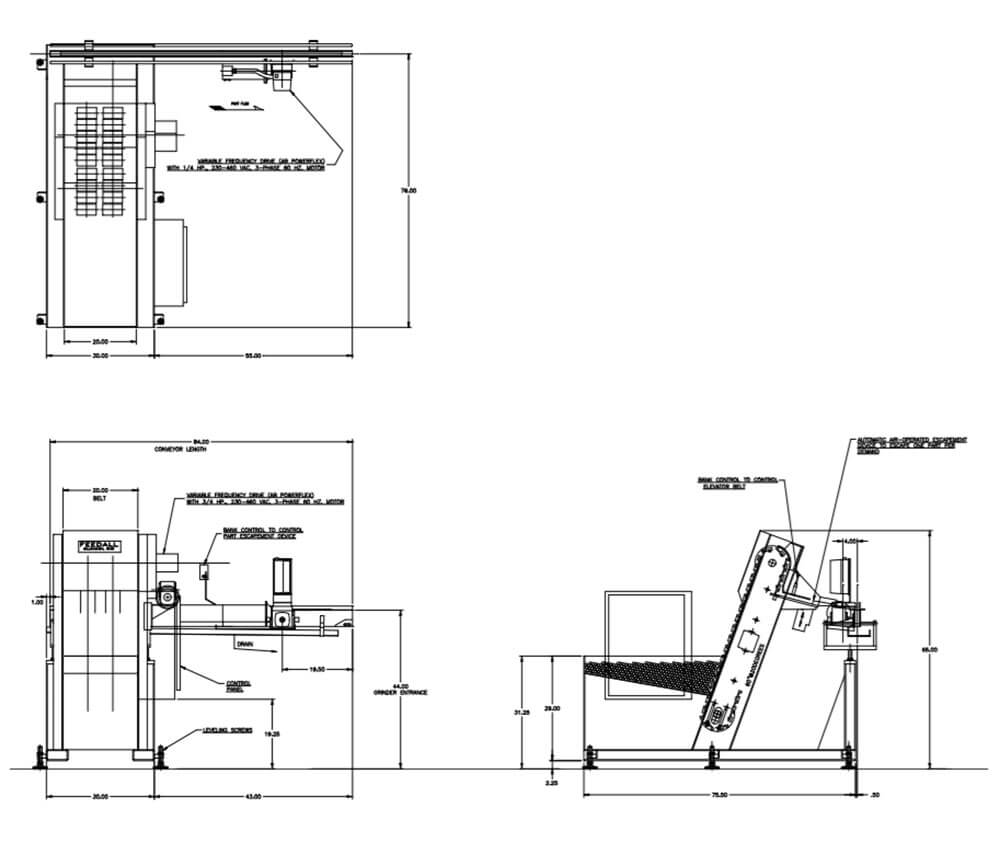

Model 2220 Elevating Hopper Feeder w/1650-1SC-84 Cross-Feed Conveyor

APPLICATION

Feed from a random loaded, floor mounted hopper, Agitator Shafts. The Shafts will be elevated from the hopper via a cleated belt and deposited onto a rear mounted accumulation ramp. An air operated escapement device will load one part at a time onto a Cross-Feed Conveyor, which will translate the parts in a continuous, end-to-end stream to the workrest of a Centerless Grinder.

WIDTH

20” Wide Elevating Belt

DRIVE

1/3 HP/AC Motor w/Variable Frequency Controller and Overload Relief Clutch
1/4 HP/AC Motor w/Variable Frequency Controller

PARTS FED (SIZE)

Agitator Shafts (0.75”Ø x 9.88”-16.22” Lg.)

FEED RATE

12-14 Parts/Minute
