17798: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

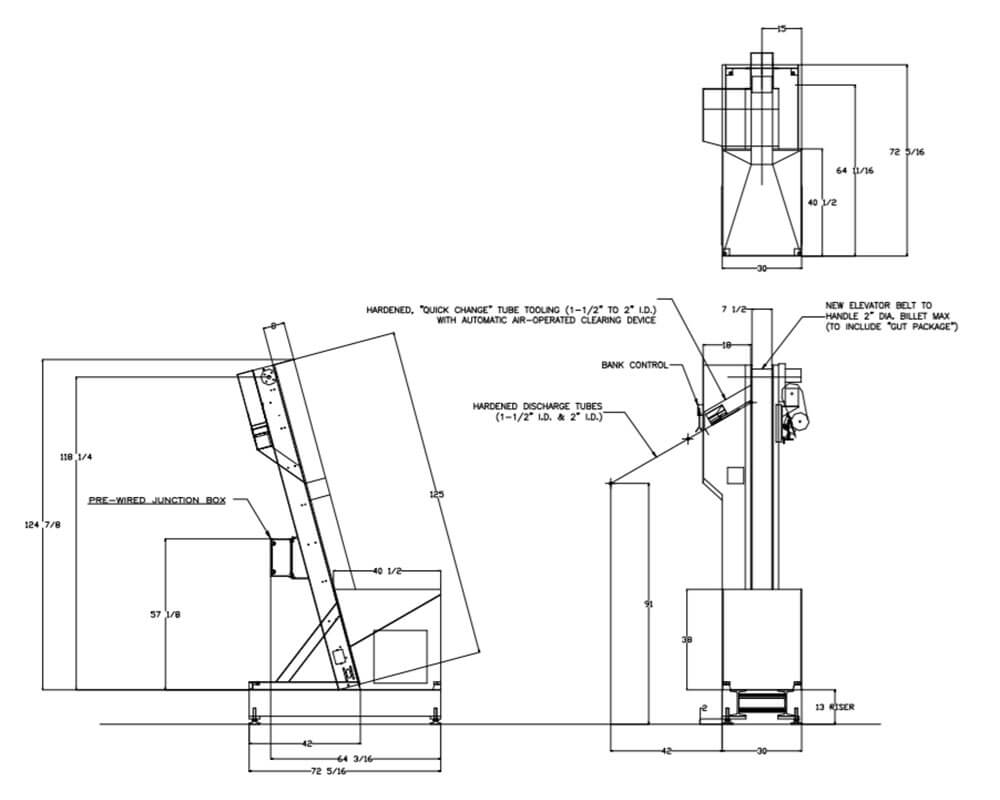

Model 2400-D Elevating Hopper Feeder
Feed from a random loaded, floor mounted hopper. The parts will be elevated from the hopper via a cleated belt and discharged in a continuous stream at 30°.
WIDTH7-1/2” Wide Table Top Chain
DRIVE1/2 HP/AC Motor
PARTS FED (SIZE)Steel Billets (1.00”-2.00”Ø x 1.89”-3.96” Lg.)
FEED RATE27 parts/minute
