CASE STUDY

17697: PROJECT FEEDING TAPERED BEARING ROLLERS INTO BULK ORIENTER

Feedall Model

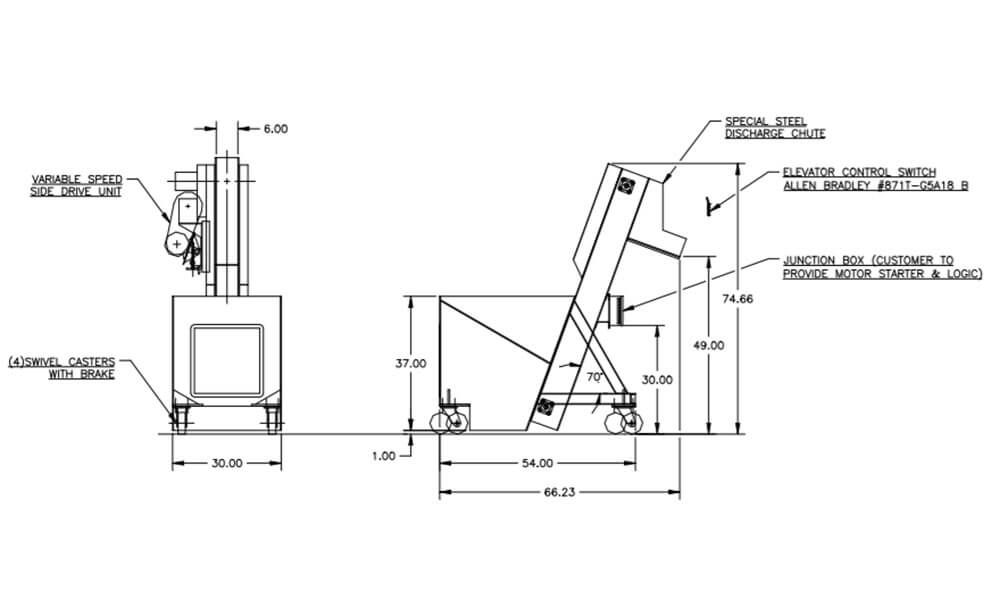

Model 2400-C Elevating Bulk Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The parts will be elevated from the hopper via a cleated belt and discharged in a rear chute.

WIDTH

7-1/2” Wide Elevating Belt

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Tapered Roller Bearings (0.482”-0.541”Ø x 0.80”-1.00” Lg.)

FEED RATE

60 Parts/Minute
