CASE STUDY

17661: PROJECT FEEDING VALVE SEAT INSERTS INTO CENTERLESS GRINDER

Feedall Model

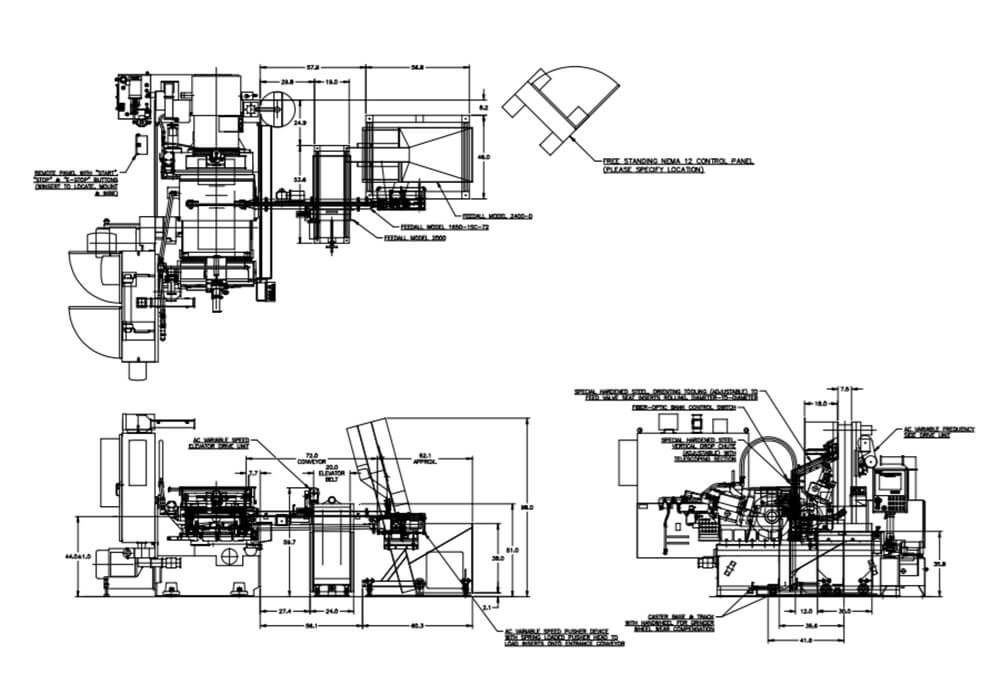

Model 2400-D Elevating Hopper Feeder w/Model 2000 Elevating Hopper Feeder & 1650-1SC-72 Entrance Conveyor

APPLICATION

Feed from a random loaded, floor mounted hopper, Valve Seat Inserts. Inserts will be elevated from the hopper via a cleated belt and discharged in a continuous stream. The parts will be deposited in a continuous, face-to-face stream to the workrest of a Landis Model 350- 20 RK Centerless Grinder.

WIDTH

7-1/2” Wide Table-Top Chain

DRIVE

1/2 HP/AC Motor

PARTS FED (SIZE)

Valve Seat Inserts (0.750”-2.63”Ø x 0.17”-0.38” Lg.)

FEED RATE

55-100 Inches/Minute
