CASE STUDY

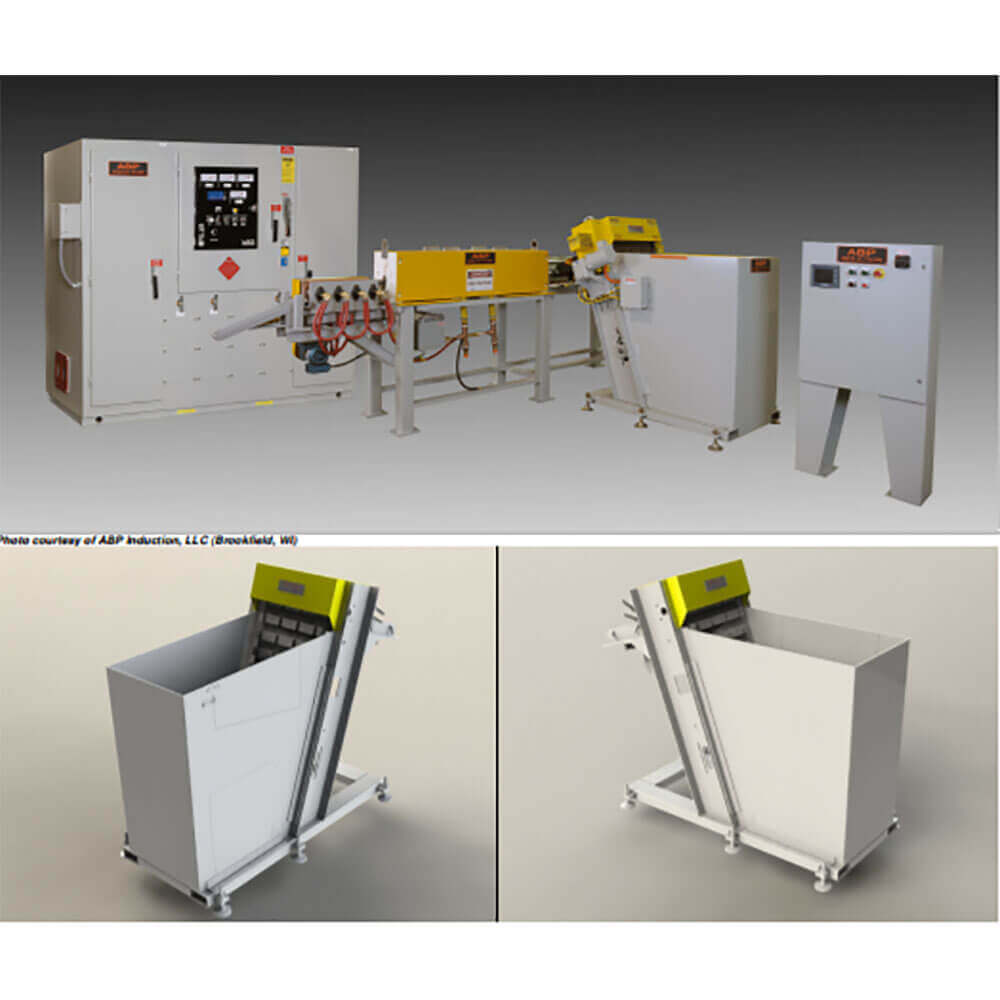

17580: PROJECT FEEDING STEEL BILLETS INTO INDUCTION HEATER

Feedall Model
Model 2224 Elevating Hopper Feeder

APPLICATION

Feed from a manually loaded, floor mounted hopper, Steel Billets. The Billets will be elevated from the hopper via a cleated belt, carried over the top of the elevator and accumulated in a continuous, diameter-to-diameter stream. An air-operated escapement will discharge one Billet at a time into ABP Induction air-operated pusher feeding an Induction Heater.

WIDTH

24” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor w/Variable Speed Drive & Overload Relief Clutch

PARTS FED (SIZE)

Steel Billets (1.44”-2.19”Ø x 14.00”-22.00” Lg.)

FEED RATE

10-15 Billets/Minute
