CASE STUDY

17438: PROJECT FEEDING STEEL SLUGS INTO INDUCTION HEATER

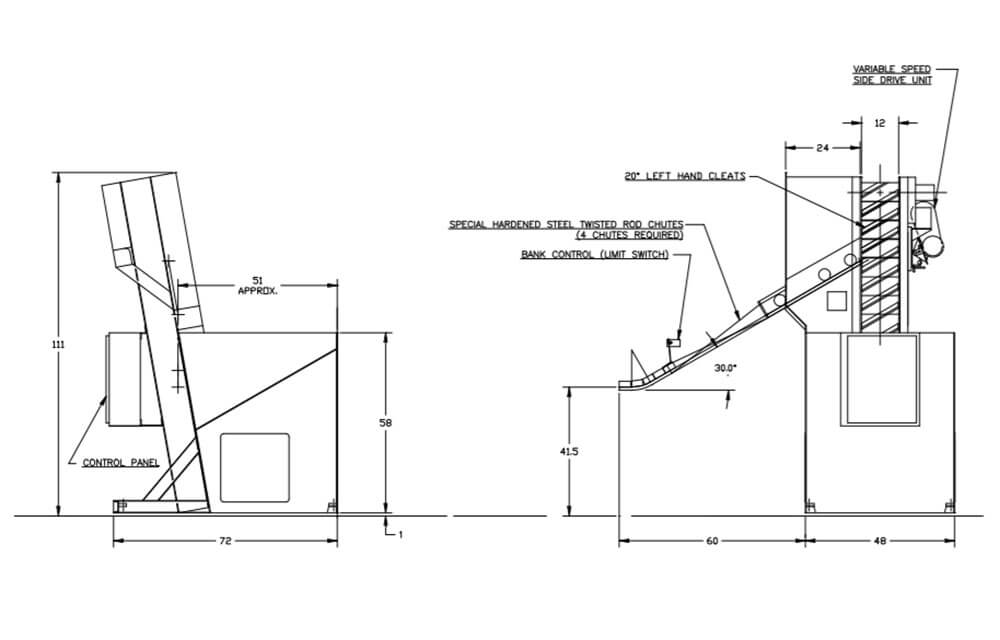

Feedall Model
Model 2500-D Elevating Hopper Feeder

APPLICATION

Feed from a random loaded, floor mounted hopper. The Slug Blinds will be elevated from the hopper via a cleated belt and fed oriented twisted flat rolling, discharged sliding diameter- odiameter axis vertical to the floor.

WIDTH

12” Wide Elevating Belt

DRIVE

3/4 HP/AC Motor

PARTS FED (SIZE)

Steel Slugs (2.12”-3.75”Ø x 1.21”-1.91” Lg.)

FEED RATE

2 Parts/Minute
