CASE STUDY

17367: PROJECT FEEDING SHOCK ABSORBER PISTON RODS INTO CENTERLESS GRINDER

Feedall Model

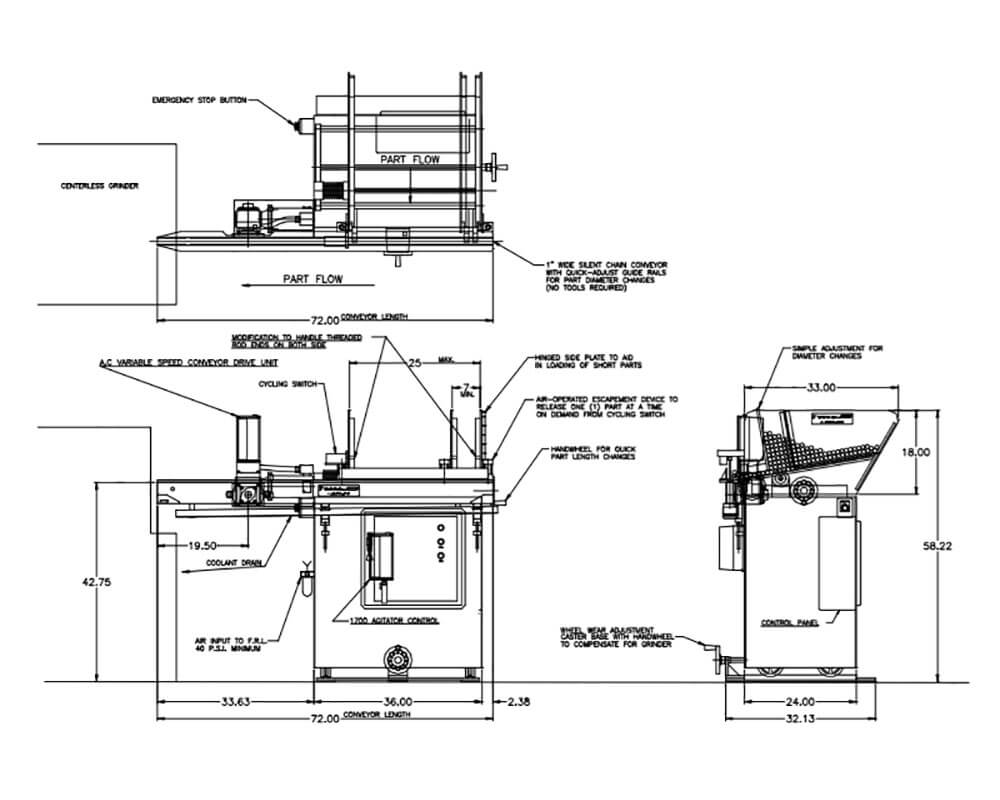

Model 1700-D Magazine Bar Feeder w/1650-1SC-72 Cross-Feed Conveyor

APPLICATION

Feed Piston Rods from a manually loaded, floor mounted magazine. The rods will be fed in a continuous stream and escaped one at a time rolling onto a front mounted, cross-feed conveyor. The conveyor will translate parts in a continuous stream to a Model 350-20 AE centerless grinder.

WIDTH

7”-25” (Adjustable)

DRIVE

1/4 HP/AC Motor

PARTS FED (SIZE)

Shock Absorber Piston Rods (0.75”-1.00”Ø x 4.00”-24.00” Lg.)

FEED RATE

226 Inches/Minute
