CASE STUDY

17255: PROJECT FEEDING PIPE FITTINGS INTO ROBOT LOADED MACHINING CENTER

Feedall Model

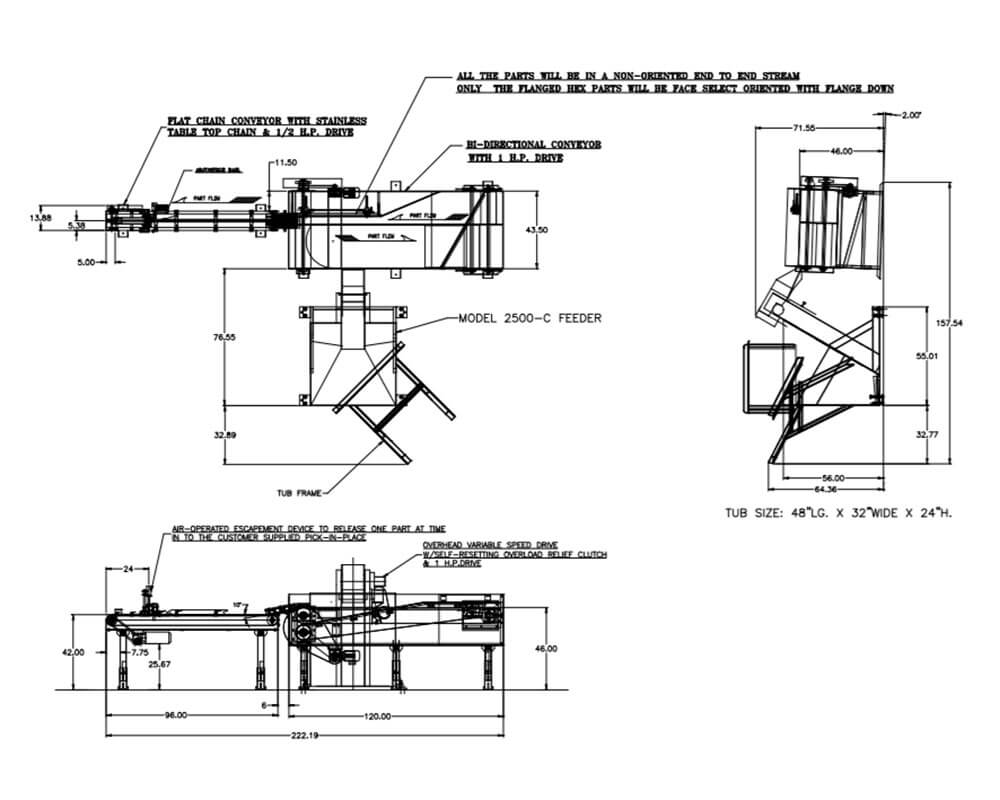

1500 Bi-Directional Orienting Conveyor w/Model 2500-C Elevating Bulk Feeder & Drop Bottom Tub Stand

APPLICATION

Feed from DROP BOTTOM TUB STAND. The parts will then be spilled randomly onto a bidirectional feed conveyor. The parts will merge from the in-feed conveyor portion onto the discharge conveyor. The parts will be escaped one at a time onto a customer supplied pick-nplace unit. All the parts will be in a non-oriented end-to-end stream released one at a time for part separation to allow for a customer supplied “vision system” to detect orientation for a customer supplied robot to pick up and load the part into a machining center.

WIDTH

24” Return Lane/18” Orienting Lane

DRIVE

1-1/2 HP/AC Motor

PARTS FED (SIZE)

Pipe Fitting Forgings (Part Matrix)

FEED RATE

8-10 Parts/Minute
